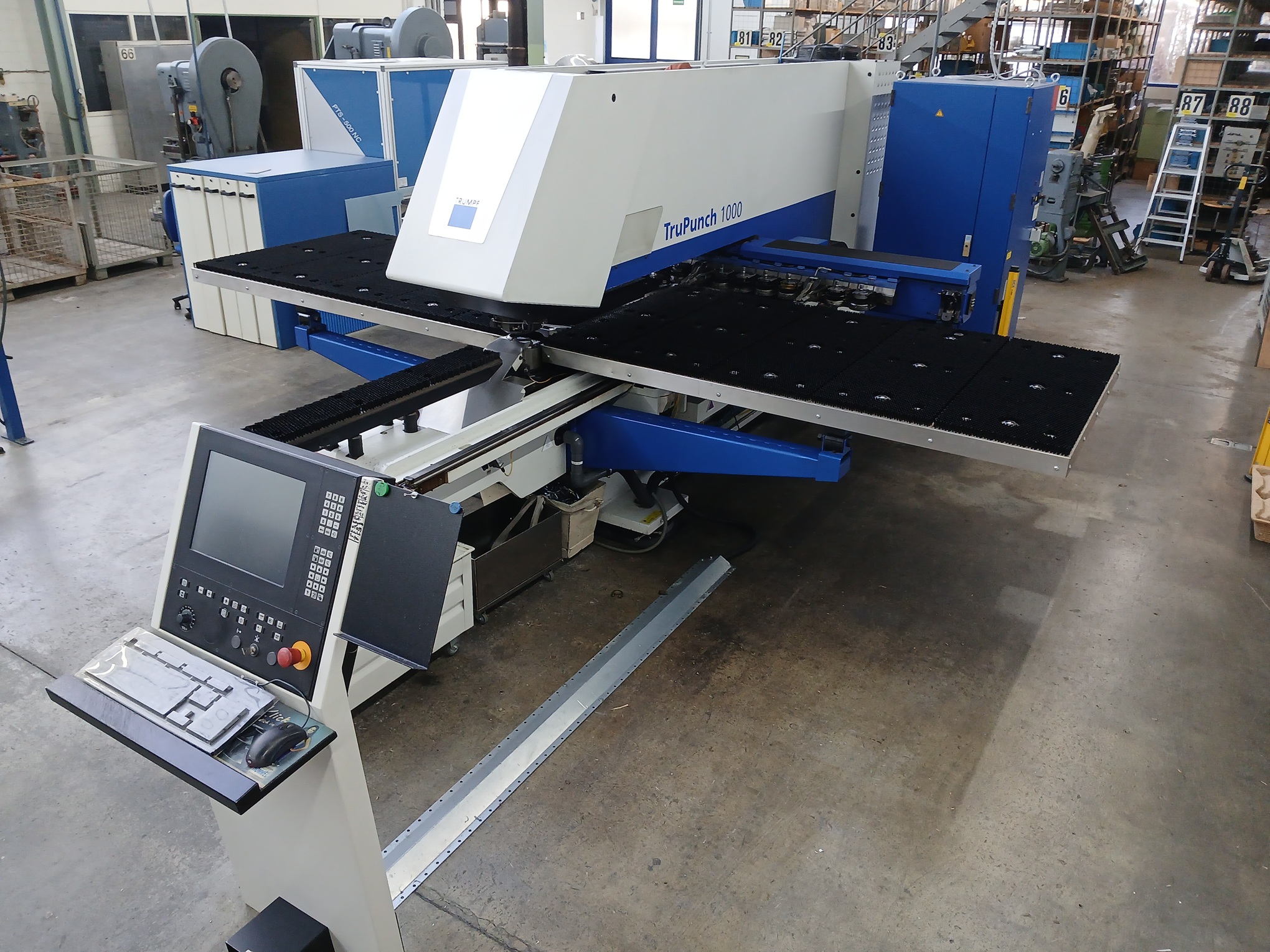

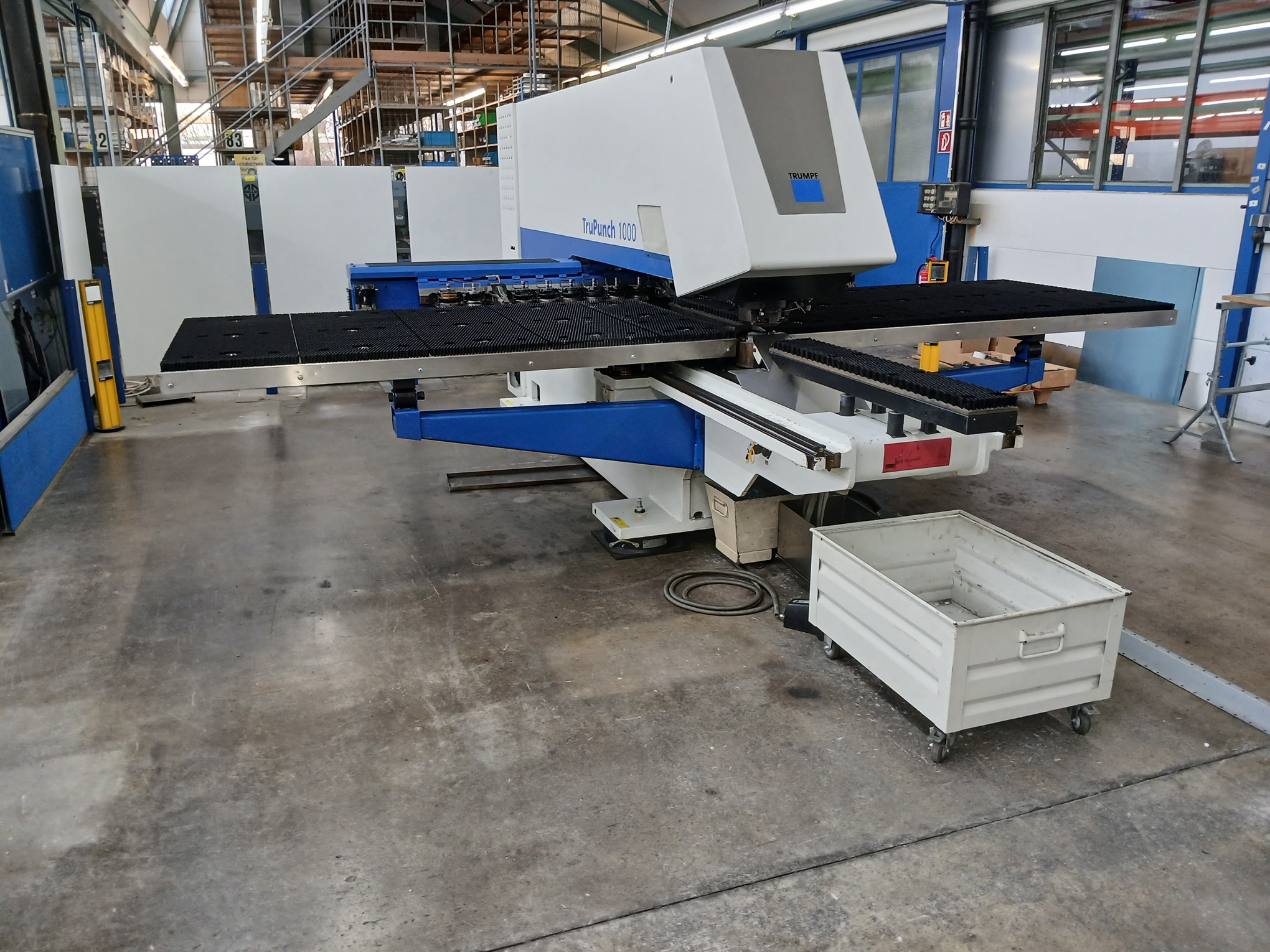

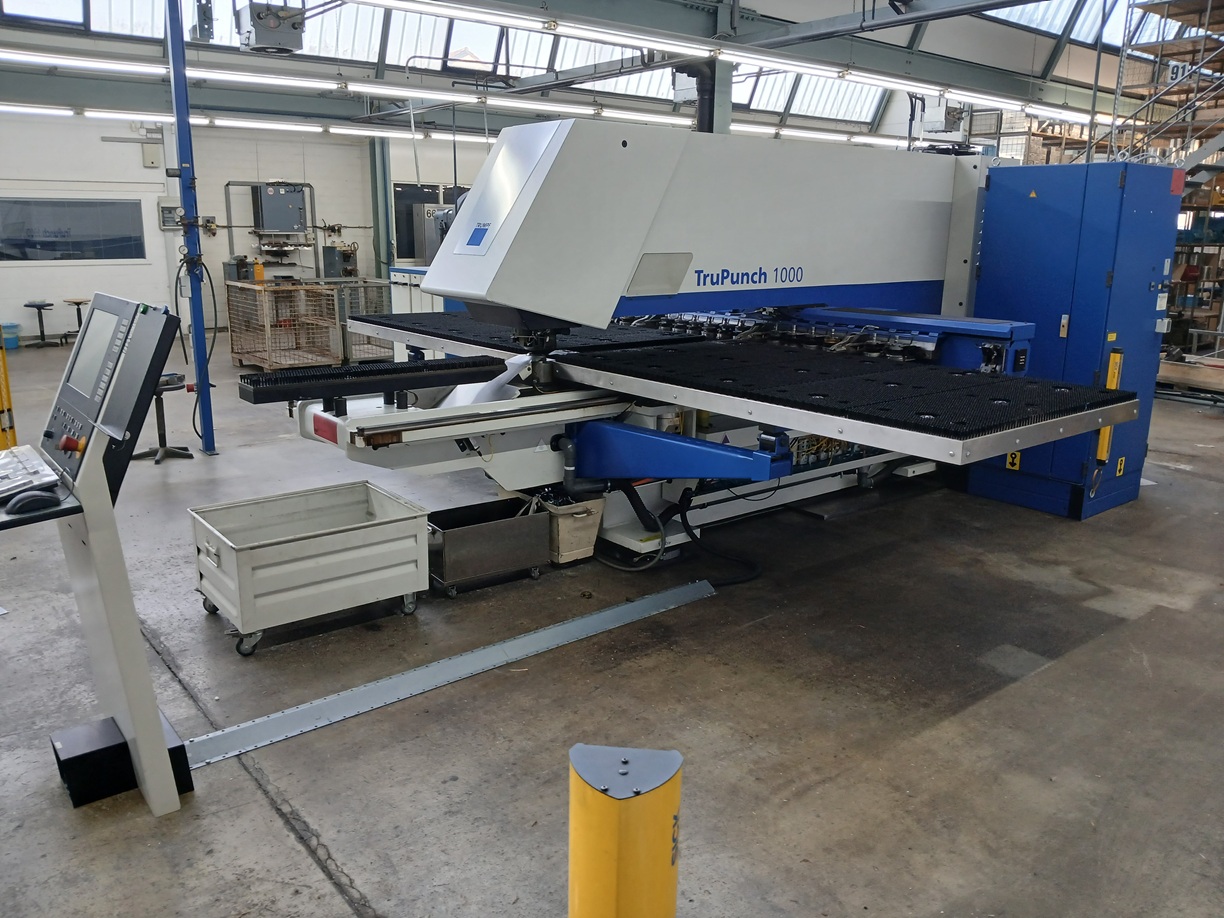

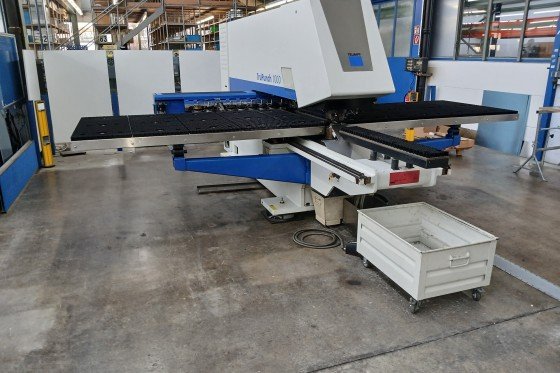

PUNCHING MACHINE TRUMPF TRUPUNCH 1000, SM-1356

Machine
⦁ Stable C-frame for easy access
⦁ Coordinate guide for high-precision machining
⦁ Linear magazine with 2 clamps
⦁ Drives with maintenance free 3-phase servo motors
⦁ Repositioning unit with programmable stripper
⦁ Ball tables
⦁ Parts chute 180 x 150 mm
⦁ Swarf bucket

Punching head
⦁ Electro-hydraulic punching head
⦁ Rotatable single tool adapter
⦁ Programmable presser foot
⦁ Tool length compensation
⦁ Spray lubrication for punches
⦁ Vacuum slug removal
⦁ Forming

Control
⦁ Controller based on Bosch PNC-P
⦁ Control panel with 15" TFT color touch screen
⦁ Easy to use
⦁ Integrated USB interface
⦁ RJ 45 network connection
⦁ Diagnostic functions

Safety
⦁ CE marking
⦁ Light barriers
⦁ Rapid hydraulic shutdown

Additional equipment

Punching options
⦁ Function MultiTool
⦁ Function MultiShear
⦁ Function MultiBend
⦁ Function Tapping
⦁ Function marking / rapid beading
⦁ Function deburring and roller technology
⦁ Function SoftPunch

Machine options
⦁ Additional clamp
⦁ Sensor for part chute
⦁ Installation on air cushions
⦁ 2nd stop pin for loading small blanks and sheet

Special thin sheet processing
⦁ Brush tables with loading and unloading aid
