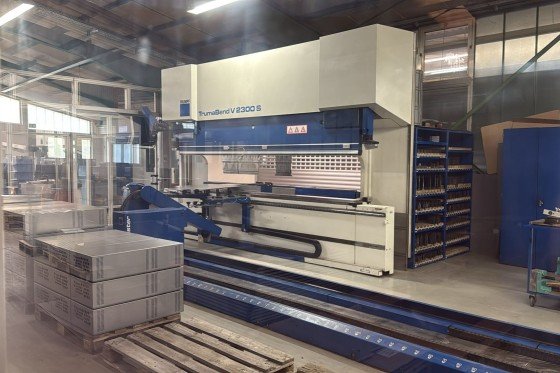

PRESS BRAKE TRUMPF TRUMABEND CELL V 2300 SX (B03), PM-1433

Standard configuration

⦁ Stable machine frame as a welded, all-steel construction
⦁ Ram (press beam), highly resistant to torsional forces
⦁ Spherical suspension of the the press beam with inclination of the press beam
⦁ Electro-hydraulic downstroke drive with 4 cylinder technology
⦁ Proportional valve technics and switchable double pump
⦁ Modern block hydraulics with control valves fitted on the cylinder
⦁ Electronic pressure compensator
⦁ Measuring system with centrically mounted glass scales and temperature compensation
⦁ Manual crowning-wedge (integrated in the table)
⦁ Upper tool clamping "New Standard Clamping", hardened, self-centering , for vertical tool change
⦁ Hydraulic lower tool clamping, hardened
⦁ Lower tool shifting programmable ( pneumatic, two positions)
⦁ Backgauge system 2 axis with rack-and-pinion drive, for X and R axis
⦁ Safe adjustment of 2 stopper finger from the front
⦁ Safety equipment: Integrated side doors and automatic back roll-top
⦁ Switch cabinet air-conditioning (air/air heat exchanger)
⦁ Network-compatible

Additional equipment

⦁ 4-axis backgauge system
⦁ Upper tool clamping, hydraulic, hardened
⦁ CNC crowning
⦁ Preparation ACB
⦁ Safety device BendGuard (for 220 mm/s)

Automation

Basic equipment BendMaster
⦁ Stable frame and manipulator
⦁ Sheet sensor
⦁ Rotary harness at the D-axis
⦁ Vacuum generation for suction grippers
⦁ Safety fence with access door

BendMaster options
⦁  Comfort operation: Monitor, mouse and keyboard
