PRESS BRAKE TRUMPF TRUBEND 5320 (B23), PM-1430

Standard configuration

Machine
⦁ C frame
⦁ Press beam
⦁ Spherical bearing of the press beam with press beam inclination
⦁ On-Demand Servo Drive with 4-cylinder technology
⦁ Distance measurement system (Y axis) with dynamic deflection compensation
⦁ Hydraulic oil filling (life-long filling)
⦁ Switch cabinet air conditioning up to 40 °C ambient temperature

Crowning
⦁ Manual wedge crowning

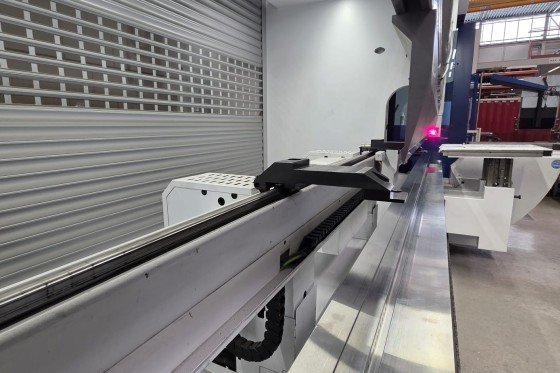

Backgauge
⦁ 2-axis backgauge (X and R)
⦁ Backgauge fingers (2 pieces)

Tool clamping
⦁ Manual upper tool clamp
⦁ Hydraulic lower tool clamp

Lower tool displacement (I axis)
⦁ Pneumatic I axis

Control
⦁ Touchpoint TruBend machine control
⦁ Integrated TRUMPF technology data
⦁ Support arm with height adjustment
⦁ Network capability

Operation ergonomics
⦁ Communications rail
⦁ MobileControl

Safety
⦁ Standard safety device
⦁ Sliding doors at the sides
⦁ Roller gate at the rear
⦁ CE marking

Additional Equipment

Crowning
⦁ CNC-controlled wedge crowning

Backgauge
⦁ 5-axis backgauge (X, ∆X, R, Z1, Z2)

Tool clamping
⦁ Hydraulic upper tool clamp

Control
⦁ Keyboard and mouse
- incl. holder

Material handling
⦁ Bending aid first arm with plastic support
⦁ Table extension for bending aid
⦁ Support bracket (2 pcs.)
- with plastic supports

Safety
⦁ Safety device BendGuard
