PRESS BRAKE TRUMPF TRUBEND 5230 (B03), PM-1441

Standard configuration

Machine
⦁ Stable machine frame as all-steel construction
⦁ Ram, stress relief annealed: Highly resistant to torsional forces, of ample size
⦁ Spherical ram suspension, with ram tilt
⦁ Electro-hydraulic downstroking drive with 4-cylinder technology
⦁ Modern block hydraulics with control valves mounted on the cylinder
⦁ Electronic pressure balance
⦁ Measuring system: with centered glass scales and temperature compensation
⦁ Hydraulic oil filled in the machine (lifetime lubrication)
⦁ Control panel: with LCD panel, footswitch für Emergency up, down and E-STOP
⦁ Oil cooler
⦁ Switch cabinet cooling (air-air heat exchanger)
⦁ Modern machine design
⦁ Hydraulic oil filled in the machine (lifetime lubrication)

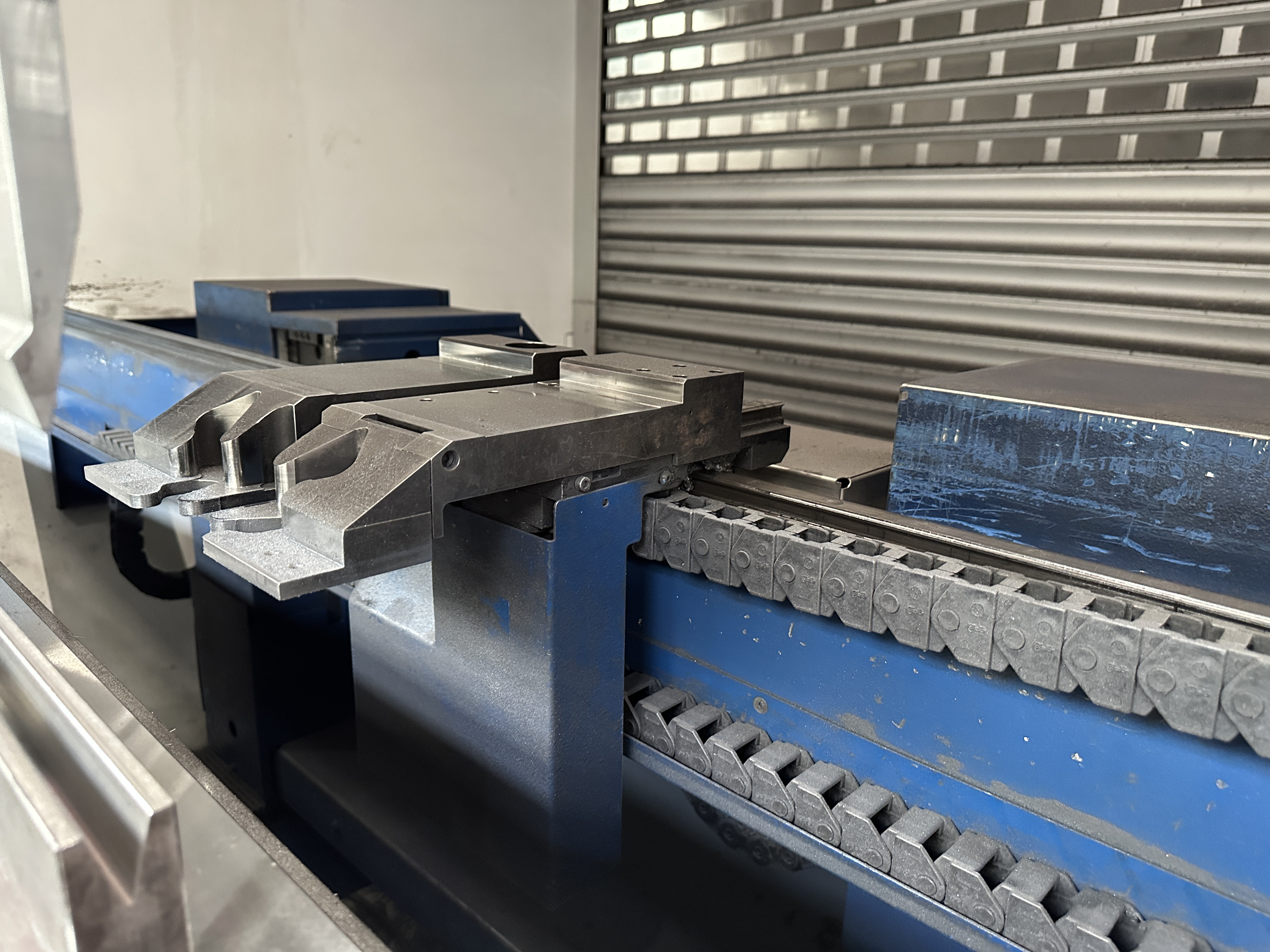

Backgauge system
⦁ Backgauge system 2-axes
⦁ 2 pieces back gauge fingers

Tool holder
⦁ Manual upper tool clamping
⦁ Hydraulic lower tool clamping

Crowning
⦁ Manual crowning: Integrated in the table, manual adjustable crowning via wedges

Lower Tool Adjustement
⦁ Lower tool adjustment, pneumatic

Safety
⦁ Standard Safety equipment: Emergency Stop button, manual roller shutter rear, protective panels, protective guards of transparent, impact-resistant plastic, CE certificate

Control
⦁ TRUMPF TASC 6000
⦁ Network connection machine control

Operation
⦁ Communication Track
⦁ Control panel: With LCD panel, footswitch für Emergency up, down and E-STOP

Additional equipment

Machine options
⦁ On-Demand Drive with higher energy efficiency

Backgauge system
⦁ 5-axis backgauge system

Tool holder
⦁ Hydraulic upper tool clamping

Crowning
⦁ CNC crowning

Safety
⦁ Additional foot switch

Material handling
⦁ 2 front support brackets

Additional options TruBend
⦁ Smart Bending Package, including:
- TCB (Thickness Controlled Bending)
- BendGuard
- Optical set-up and positioning assistant
⦁ Working area lighting, rear
⦁ Working area lighting, front
⦁ Mobile Control

Tooling system
⦁ Preparation ACB
