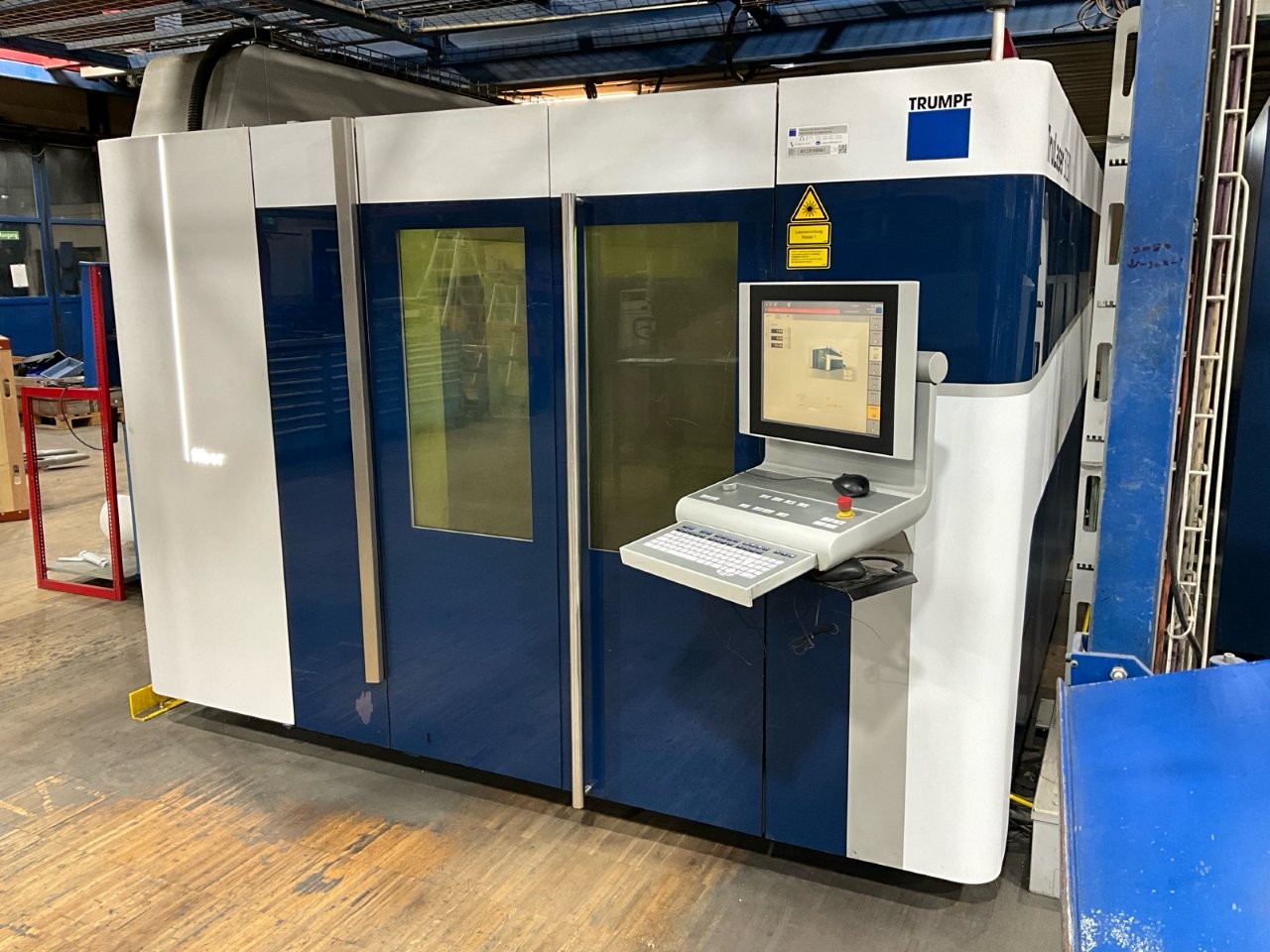

LASER CUTTING MACHINE TRUMPF TRULASER 5030 FIBER (L56), 5000 WATT, LM-2008

Standard configuration

Machine
⦁ Closed machine frame
⦁ Integrated cabinet
⦁ Automatic pallet changer lengthwise installation
⦁ Torque drive in combination with direct linear drives
⦁ Enclosed beam delivery via fiber optic cable
⦁ Chiller for machine cooling (water-air)
⦁ Integrated eletrical cabinets with inside light
⦁ Power supply TruDisk  via the machine
⦁ Longitudinal conveyor
⦁ Working area lighting
⦁ Positioning laser diode
⦁ Spray device
⦁ PierceLine
⦁ FocusLine
⦁ NitroLine
⦁ PlasmaLine
⦁ Automatic nozzle cleaning

TRUMPF Laser

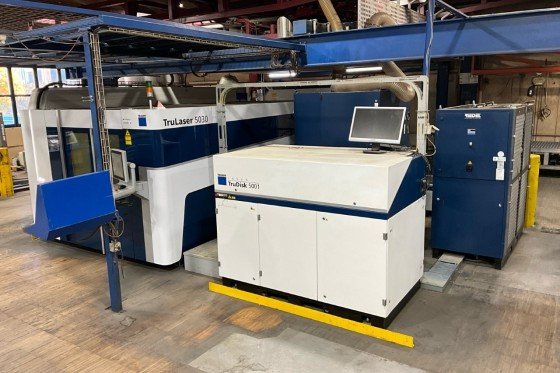

⦁ Solid state laser TruDisk 3001 with 1 LLK output
⦁ Fiber optic cable according standard layout (laser next to the machine)
⦁ Laser chiller unit (water-air)
⦁ Stimulation via pump diodes
⦁ Laser power control

Cutting head
⦁ Universal cutting head with complete adaptive lense system
⦁ One cutting head strategy
⦁ Protection glass to avoid lense contamination
⦁ Protection glass monitoring
⦁ ControlLine: Height regulation and sheet edge detection

Control
⦁ SINUMERIK 840D SL
⦁ 17” Touch panel
⦁ Easy shop floor programming
⦁ Fast reproduction
⦁ Technology data is integrated
⦁ Automatic shutdown
⦁ Programmable cutting gas pressure
⦁ FastLine
⦁ FlyLine
⦁ AdjustLine
⦁ Integrated e-shop

Data transmission
⦁ RJ45 network connection
⦁ USB interface

Safety
⦁ CE Label
⦁ Light barriers
⦁ Multi-chamber extraction system
⦁ Compact dust extractor
⦁ Machine enclosure with certificated window (right door)
⦁ Electrical curl up roof

Additional equipment

Laser options
⦁ Solid-state laser TruDisk 5001 with 1 laser output

Machine options
⦁ Nozzle changer
⦁ BrightLine Fiber
⦁ Door window on left side for better insight
⦁ Integrated video camera (Full HD) for process monitoring
⦁ Transverse conveyor belt with tipping container (right hand installation)

Automation

LiftMaster R (buit 2012)
⦁ Basic system incl. peeling device and measuring device for thick sheets, extension: Rake (R), exchangeable prongs
⦁ Without loading station and without unloading platform
