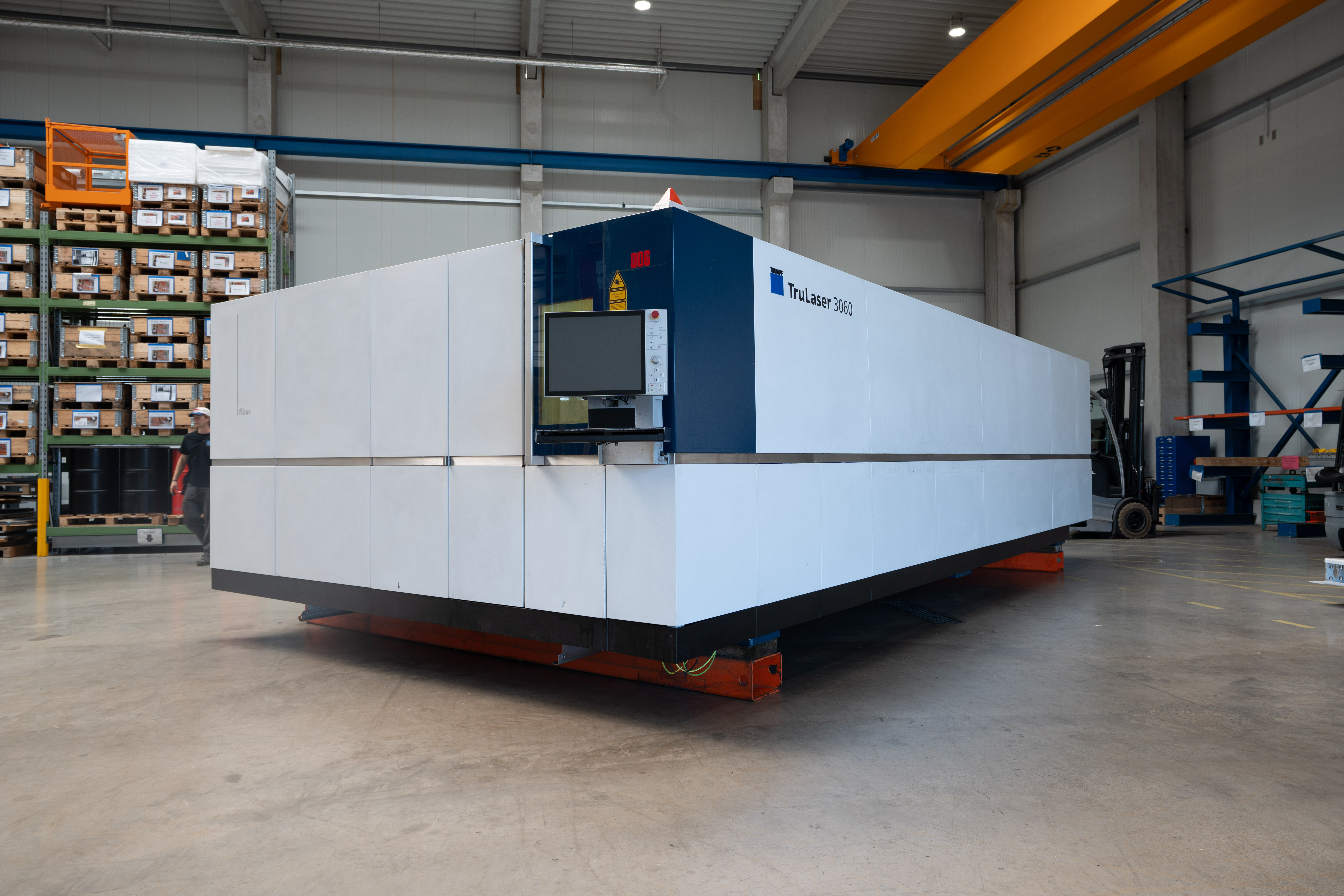

LASER CUTTING MACHINE TRUMPF TRULASER 3060 FIBER (L66), 6000 WATT, LM-1974

Direct offer
LM-1974
TRUMPF
TruLaser 3060 fiber (L66)
2017
6000 x 2500 x 115 mm
6000 Watt
Siemens Sinumerik 840D SL
25 mm
25 mm
25 mm
140 m/min

Standard configuration

Machine
⦁ Working Range 6000 x 2500 mm
⦁ Closed machine frame
⦁ Integrated cabinet
⦁ Automatic pallet changer lengthwise installation
⦁ Motion unit for high precision processing
⦁ Gantry drive in combination with direct linear drives
⦁ Chiller for machine cooling
⦁ Integrated cabinets
⦁ Wide longitudinal conveyor
⦁ Work area lighting
⦁ Positioning laser diode
⦁ Spray device
⦁ PierceLine
⦁ FocusLine
⦁ NitroLine
⦁ PlasmaLine
⦁ Automatic nozzle cleaning

TRUMPF Laser
⦁ External Solid-state laser TruDisk 3001 with 1 fiber optic cable laser output
⦁ Stimulation via pump diodes
⦁ Laser power control

Cutting head
⦁ Universal cutting unit
⦁ One cutting head strategy
⦁ Protection glass to avoid lens contamination

Control
⦁ Sinumerik 840D SL
⦁ ControlLine
⦁ Easy shop floor programming
⦁ Fast post production

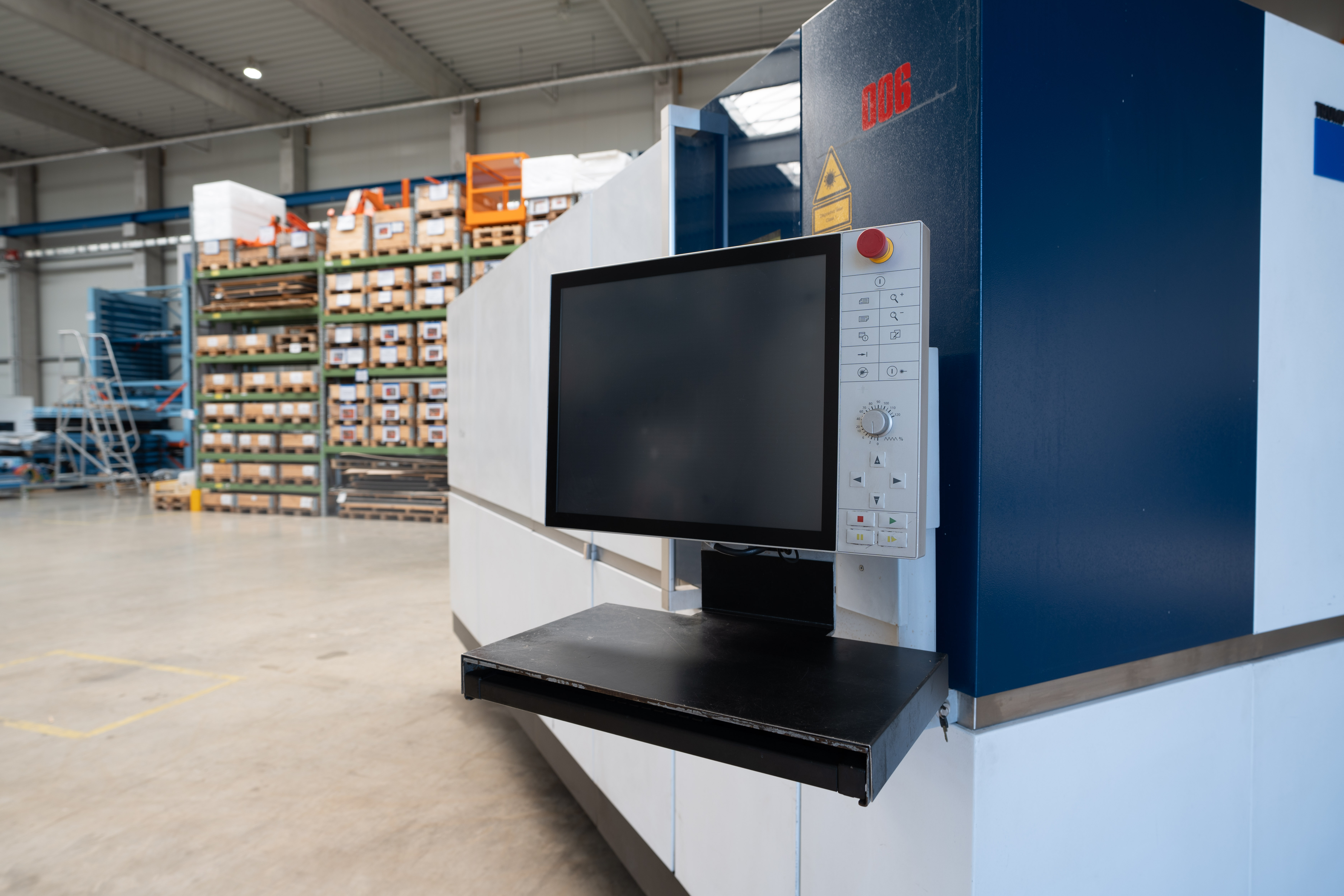

⦁ 19" Touch panel
⦁ Technology data is integrated
⦁ Automatic shutdown
⦁ Programmable cutting gas pressure
⦁ Multi-sheet processing
⦁ Microweld
⦁ FastLine
⦁ AdjustLine
⦁ FlyLine
⦁ Condition Guide

Data transmission
⦁ RJ45 network connection and a USB interface
⦁ Central Link

Safety
⦁ CE label
⦁ Light barriers
⦁ Multi-chamber extraction system
⦁ Compact dust extractor
⦁ Machine enclosure with certificated window (right door)

Additional equipment

⦁ External Solid-state laser TruDisk 6001 with 1 laser output (includes BrightLine fiber and  Performance package fusion cut)

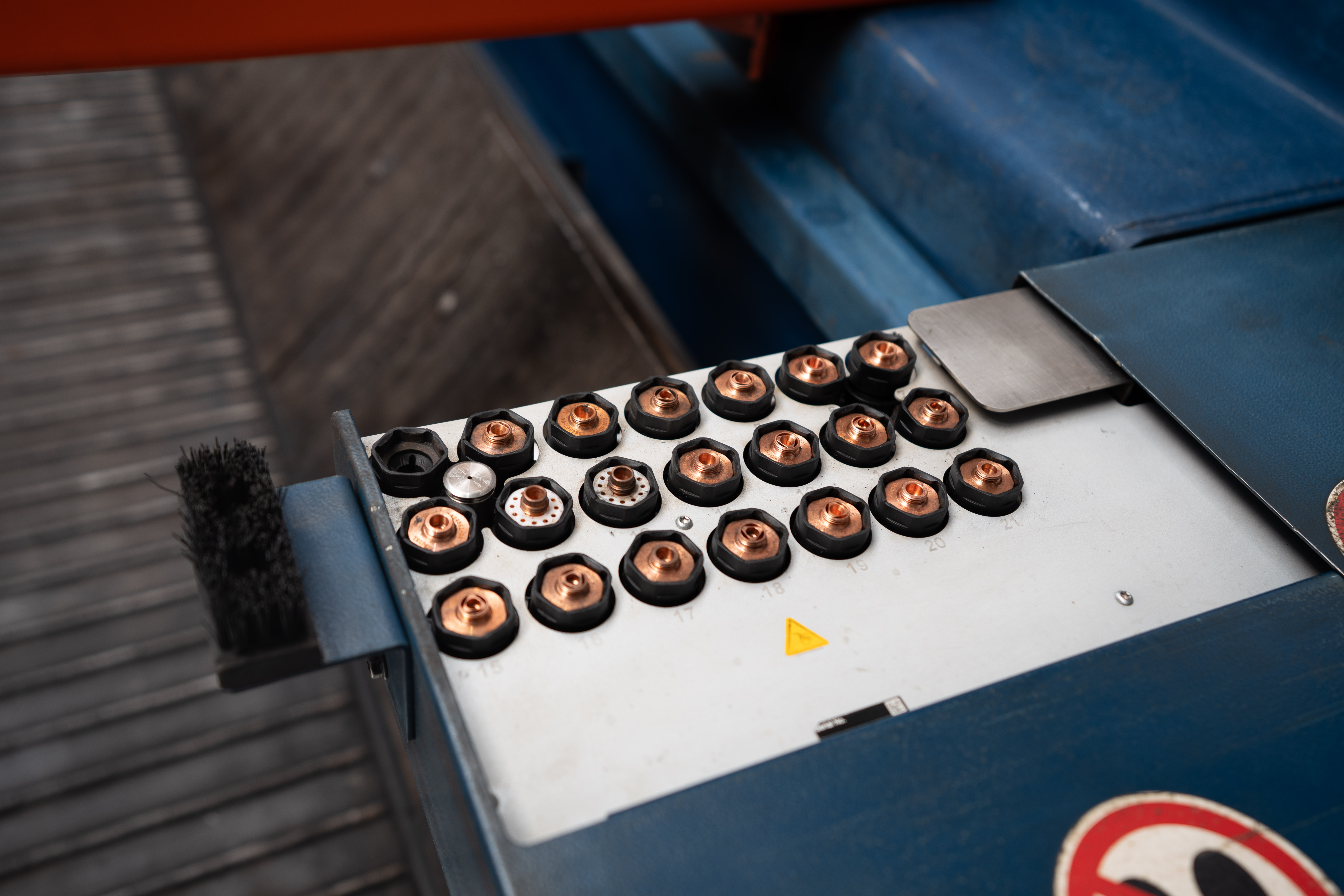

⦁ Nozzle changer
⦁ Copper cutting package (cutting data for O2 and N2)
⦁ Brass cutting package  (cutting data for N2)
⦁ CoolLine
⦁ Smart Collision Prevention (requires TruTops Laser or TruTops Boost)

Automation

⦁ Preparation LoadMaster
