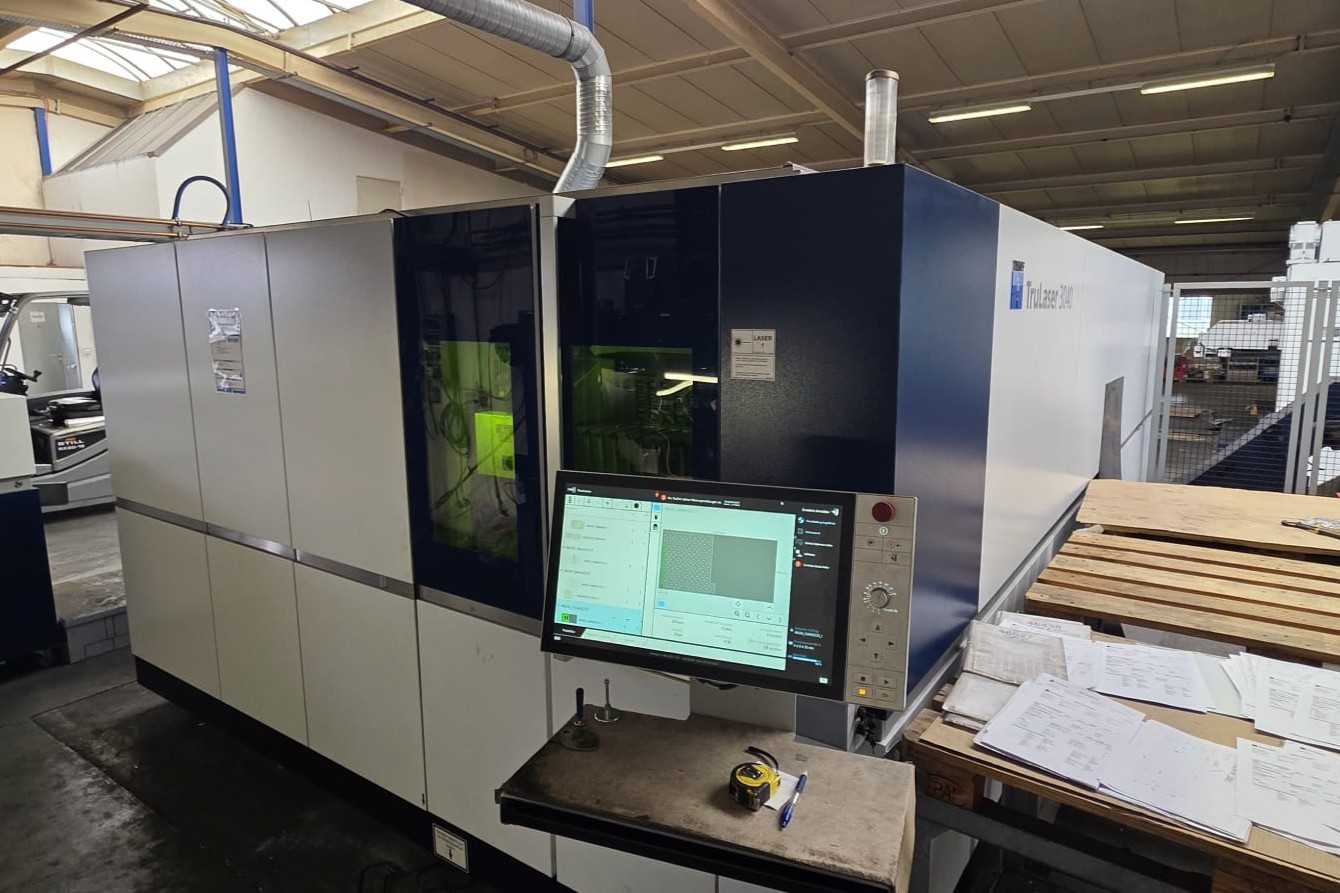

LASER CUTTING MACHINE TRUMPF TRULASER 3040 FIBER (L95), 8000 WATT, LM-2026

Standard configuration

Machine
⦁ Working range: 4000 × 2000 mm
⦁ Box frame
⦁ Longitudinal conveyor belt
⦁ Motion unit for high-precision processing
⦁ Gantry drive in combination with linear direct drives
⦁ Process cooler for machine and laser (water/air)
⦁ Work area illumination
⦁ Pilot laser
⦁ Spraying equipment
⦁ Automatic nozzle cleaning
⦁ Integrated electrical cabinets
⦁ Integrated cabinet
⦁ Closed beam guidance via laser light cable (LLK)
⦁ Machine status light

TRUMPF laser
⦁ Excitation using pump diodes
⦁ Laser power control

Cutting unit
⦁ Single cutting head strategy
⦁ Universal cutting unit with adaptive lens system
⦁ Protective glass
⦁ Online condition checking of protective glass
⦁ Automatic nozzle centering

Control
⦁ Quick post-production
⦁ SINUMERIK control
⦁ Ergonomic control panel with 21.5" wide-screen multi-touch color display
⦁ Integrated technology data
⦁ Auto-shutdown
⦁ Programmable cutting gas/pressure selection
⦁ Microweld
⦁ Remote support interface
⦁ Production plan
⦁ Multi-sheet processing
⦁ Condition Guide
⦁ Cutting Guide

Functions
⦁ AdjustLine
⦁ ControlLine
⦁ FastLine
⦁ FlyLine
⦁ FocusLine
⦁ NitroLine
⦁ PierceLine
⦁ PlasmaLine
⦁ Copper cutting package
⦁ Brass cutting package

Data transmission
⦁ USB interface
⦁ RJ45 network interface
⦁ Central Link
⦁ Online Update Manager

Safety
⦁ CE marking and EC Machinery Directive
⦁ Light barriers
⦁ Multi-chamber compact dust extractor
⦁ Enclosed protective housing with certified door viewing panel, right

Advanced standard configuration
⦁ Compact dust extractor
⦁ Sliding roof
⦁ Slats made of mild steel
⦁ TruDisk power supply via the machine
⦁ Automatic pallet changer in longitudinal direction (standard/heavy-duty)
⦁ Machine ambient temperature 5 to 40°C / 45 °C
⦁ Nanojoints
⦁ Dynamic Focus Control

Additional equipment

Advanced laser equipment
⦁ External solid-state laser TruDisk 8001 with one laser output: Includes BrightLine fiber, Highspeed cutting package
Additional functions, machine
⦁ Nozzle changer (21 nozzle positions)
- 21 nozzle positions
⦁ Dot Matrix Code / Purchase
- Part identification with Dot Matrix Code
- Additional function: rapid and simple application of free text with minimal programming effort
- Requirement: TruTops Boost version 8 or above
- Unlimited time license
⦁ Prefilter for gases
- Prefilter for filtering particles in nitrogen and oxygen gas lines

Additional cutting packages
⦁ Highspeed Eco cutting package
⦁ CoolLine with continious water supply
⦁ Cutting package for thick sheets
Advanced machine equipment
⦁ Wide transverse conveyor belt with tipping container (to the right of the machine)
⦁ Door window on left side, for extended view

Data transmission
⦁ OPC UA for Machine Tools basic (unmatic, license for 12 months – automatic extension)

Automation

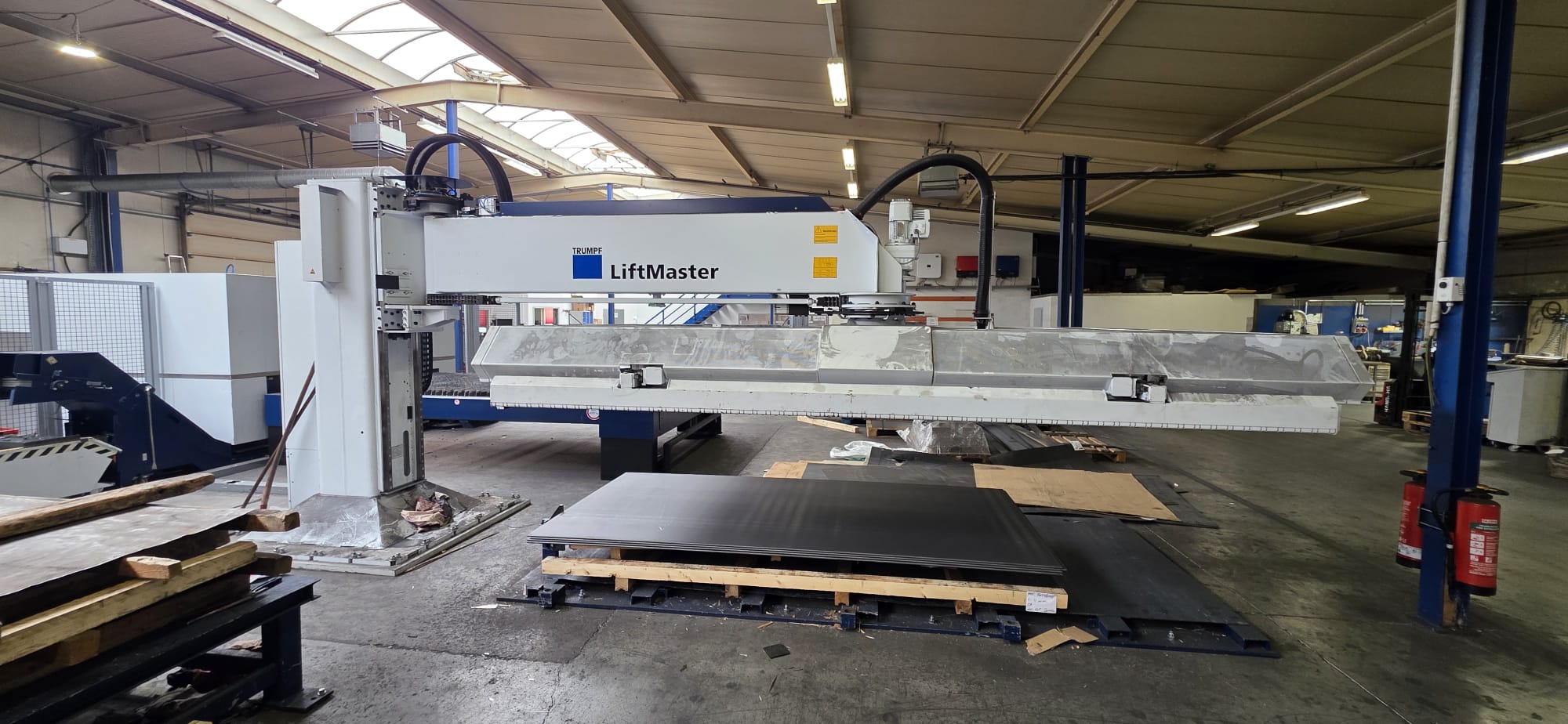

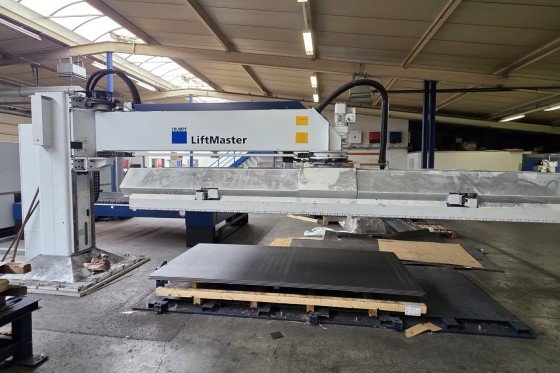

LiftMaster 2040
⦁ LiftMaster 2040 basic unit
- Type 2040: sheet sizes/thicknesses 4064 mm x 2032 mm/loading 30 mm/unloading 20 mm
- Symmetrical installation with loading on the left or right
Loading
- Peeling unit
- Double sheet detection
- Suction frame
LiftMaster 2040
- Swivel range extended to 224°

LiftMaster 2040 options

⦁ Loading station
- For stack heights of up to 200 mm
⦁ Unloading platform
⦁ Third position
- Needed if loading station and unloading station are not at the same position
