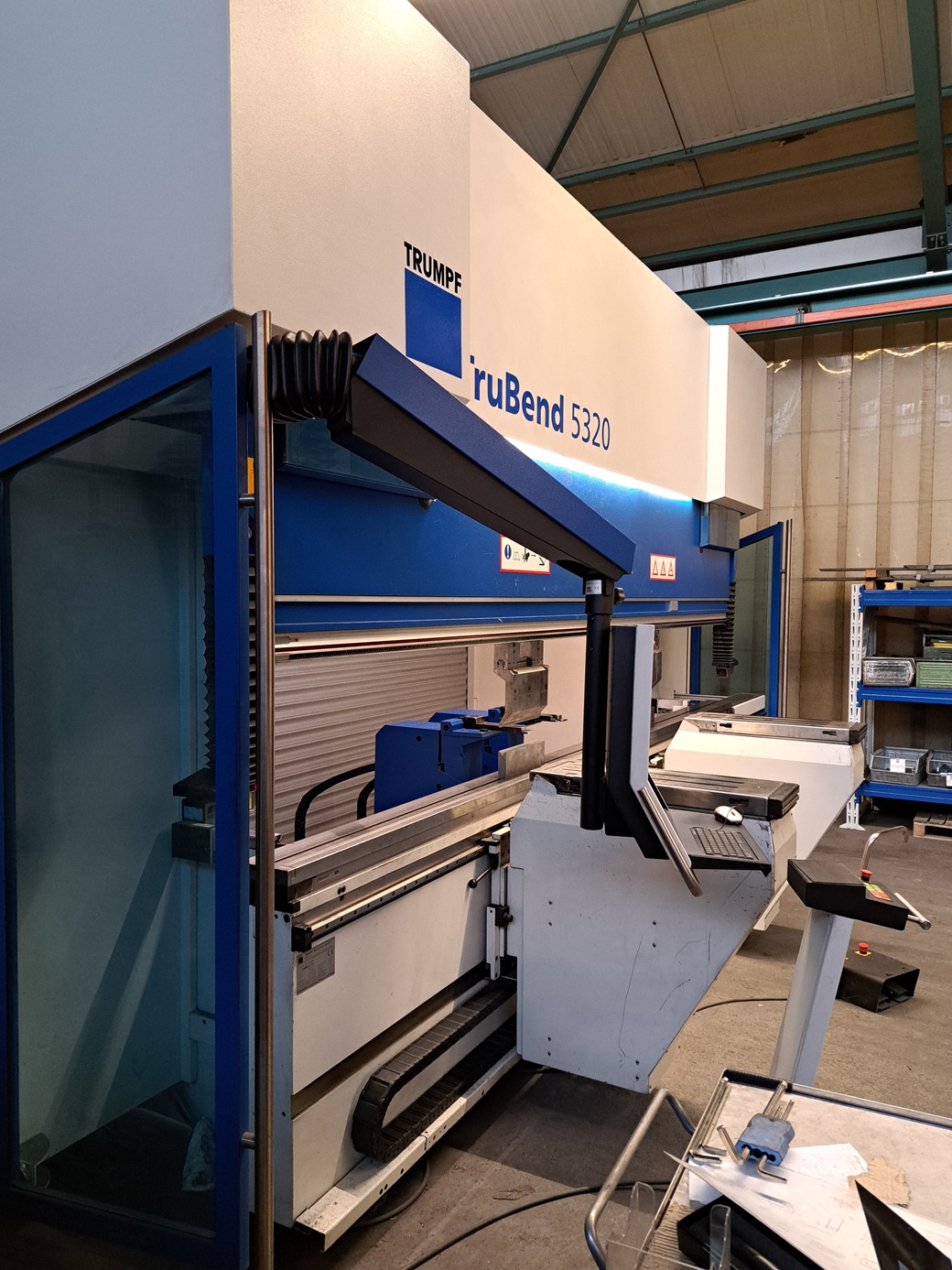

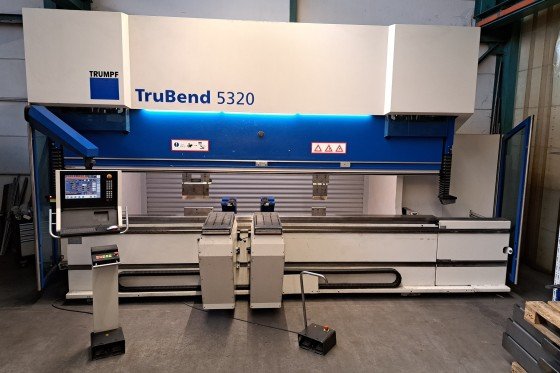

PRESS BRAKE TRUMPF TRUBEND 5320, PM-1424

Standard configuration

Machine
⦁ Stable machine frame as all-steel construction
⦁ Ram, stress relief annealed
⦁ Spherical ram suspension, with ram tilt
⦁ Electro-hydraulic downstroking drive with 4-cylinder technology
⦁ Modern block hydraulics with control valves mounted on the cylinder
⦁ Electronic pressure balance
⦁ Measuring system: with centered glass scales and temperature compensation
⦁ Control panel: with LCD panel, footswitch für Emergency up, down and E-STOP
⦁ Oil cooler
⦁ Modern machine design

Backgauge system

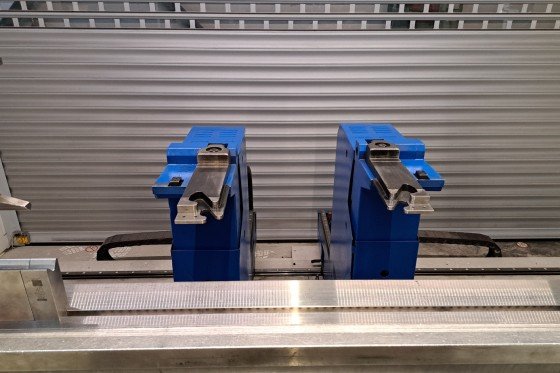

⦁ Backgauge system 2-axes
⦁ 2 pieces back gauge fingers

Tool holder
⦁ Manual upper tool clamping
⦁ Hydraulic lower tool clamping

Crowning
⦁ Manual crowning

Lower Tool Adjustement
⦁ Pneumatic lower tool Adjustment, programmable

Safety
⦁ Standard Safety equipment: Emergency Stop button, manual roller shutter rear, protective panels, CE certificate

Control
⦁ TRUMPF TASC 6000
⦁ Network connection machine control

Additional equipment

Backgauge System
⦁ 6-axis backgauge System with switch cabinet cooling (air-air heat exchanger)

Tool holder
⦁ Hydraulic upper tool clamping

Crowning
⦁ CNC crowning

Lower tool shifting
⦁ Lower tool Adjustment: CNC controlled (I axis)

Safety device
⦁ BendGuard for 220mm/s.
⦁ Additional foot switch

Material handling
⦁ Bending aid first arm
⦁ Bending aid second arm
⦁ 4 x Table length extension
⦁ 2 x Table width extension

Additional options TruBend
⦁ Optical setup and positioning aid
⦁ Work area lighting rear
⦁ Work area lighting front
⦁ Preparation ACB
⦁ MobileControl
