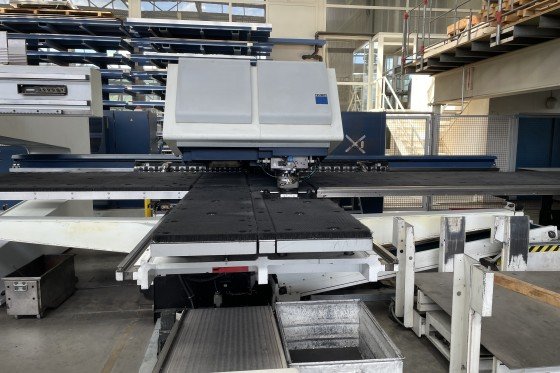

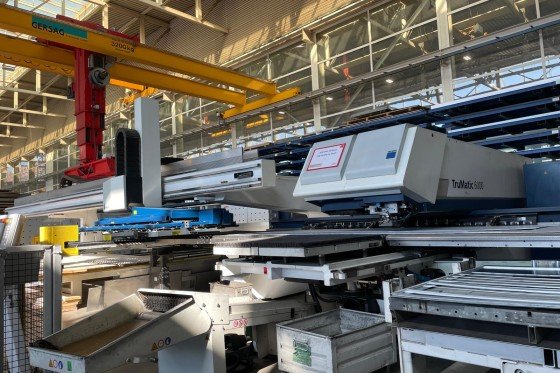

COMBINED MACHINE TRUMPF TRUMATIC 6000 - 1600 (K05) (FMC), 3200 WATT, KM-1161

Standard configuration

Machine
⦁ Stable C-frame for easy access
⦁ Coordinate guide for high-precision machining
⦁ Drives with maintenance free 3-phase servo motors
⦁ Linear magazine with 22 tool stations and 2 clamps
⦁ Repositioning unit with programmable stripper
⦁ Footswitch for clamp closing
⦁ 1st index pin (inside right)
⦁ Ball-fitted tables
⦁ Two parts chutes 500 x 500 mm
⦁ 2 good parts container
⦁ Chip container
⦁ FocusLine
⦁ NitroLine
⦁ FastLine
⦁ FlyLine
⦁ Slag cone detection
⦁ Ejection cyrlinder for laserparts

TRUMPF Laser
⦁ Laser TruFlow 3200 incl. LensLine and optimized stand-by mode
⦁ Radio-frequency excitation
⦁ Chiller unit
⦁ Laser control TASC
⦁ Encapsulated beam delivery

Cutting head
⦁ Lens cutting head with 170 mm focal length
⦁ Universal cutting head quick-change device (UTI)
⦁ ControlLine

Punching station
⦁ Electro-hydraulic punching head
⦁ Rotatable single tool adapter
⦁ Programmable presser foot with selectable presser foot down force
⦁ Tool length compensation
⦁ Spray lubrication for punches
⦁ Vacuum slug removal
⦁ Calculation of fill level in die base
⦁ Punch stroke rate and thread stroke rate counters
⦁ Monitoring of fill level of tapping and tool lubrication

Control
⦁ Open controller based on Bosch Rexroth IndraMotion MTX
⦁ Control panel with 17,0“ TFT touch screen
⦁ NC program management
⦁ Integrated technology data
⦁ Integrated e-shop
⦁ Programmable cutting gas pressure
⦁ Auto-shutdown with wake-up mode
⦁ Production plan

Data transmission
⦁ USB interface and network connection RJ45

Safety
⦁ CE marking
⦁ Two-beam light barriers
⦁ Monitoring system for gas pressure, temperature and cooling water
⦁ Rapid hydraulic shutdown
⦁ Laser guard against scattered radiation
⦁ Compact dust extractor

Additional equipment

Laser options
⦁ Laser TruFlow 3200 with LensLine and optimized Standby

Punching options
⦁ Function MultiTool
⦁ Function MultiShear
⦁ Function MultiBend
⦁ Function Tapping
⦁ Function Marking / rapid beading
⦁ Function engraving
⦁ Function deburring and roller technology
⦁ Functions SoftPunch
⦁ Adaptive stroke calibration
⦁ StripLine
⦁ Die spray lubrication with monitoring of fill level
⦁ Smart Punch Monitoring (Breakage control for punch)
⦁ Descending die

Machine options
⦁ Additional clamp
⦁ Clamp closing automatically machine
⦁ Repositioning cylinders
⦁ Anti-vibration installation
⦁ Chip conveyor with tilt container

Options for thin sheet processing
⦁ Brush tables with loading and unloading aid
⦁ Blow-out device for small parts
⦁ Sheet collision detection

Conveyor belt
⦁ Conveyor belt laser station (1 parts container included)

Automation

SheetMaster
⦁ SheetMaster 4000 x 1500 mm standard configuration:
- Loading station with fanning magnets 4000 x 1500 mm
- Unloading pedestal 4000 x 1500 mm
- Parts loading (size min. 600 x 350 mm)
- Suction frame 4000 x 1500 mm
- Peeler cup and suction plate module
- Vacuum sensor fro every suction cup
- Sheet thickness sensor for double sheet check
- TruMatic 6000 additional support table left and right (brush version)

SheetMaster options
⦁ Peeling system incl. positioning aid for oversize (4000 x 1500 mm)
⦁ Unloading monitoring laser parts
⦁ Chain conveyor
- 4 pallets lengthwise
- max. loading height, depending on pallet height (customer structure)

GripMaster
⦁ GripMaster 4000 x 1500 mm standard configuration:
- Scissor table 400 mm
- Tiltable scrap skeleton pallet
- Skeleton grippers with sensor
