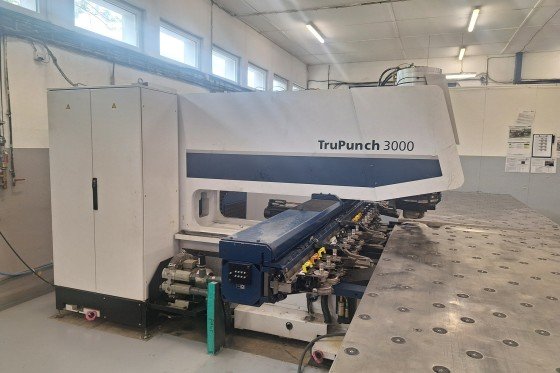

PUNCHING MACHINE TRUMPF TRUPUNCH 3000 - 1300 (S11), SM-1358

Standard configuration

Machine
⦁ Stable C-frame for easy access
⦁ Coordinate guide for high-precision machining
⦁ Linear magazine incl. 2 clamps
⦁ Drives with maintenance free 3-phase servo motors
⦁ Repositioning unit with programmable stripper
⦁ Ball-fitted tables
⦁ Parts chute with programmable support table
⦁ Good parts container
⦁ Chip container
⦁ Automatic shutdown mechanism

Punching station
⦁ Electrical punching head
⦁ Rotatable single tool adapter
⦁ Manual adjustable presser foot force
⦁ Programmable presser foot
⦁ Tool length compensation
⦁ Punch stroke counter
⦁ Spray lubrication for punches
⦁ Vacuum slug removal
⦁ Forming
⦁ Monitoring of fill level of tapping and tool lubrication

Control
⦁ Open control system based on the Basis Bosch MTX CMP70
⦁ Control panel with 17.0“ Touchpanel
⦁ Program management
⦁ Production plan
⦁ Integrated E-Shop
⦁ Integrated technology data

Programming
⦁ Extended workshop programming

Data transmission
⦁ USB interface and network connection

Safety
⦁ CE marking
⦁ Multi-beam light barriers
⦁ Rapid shutdown for drives

Additional equipment

Punching options
⦁ Function MultiTool
⦁ Function MultiShear
⦁ Function MultiBend
⦁ Tapping with stroke counter and tap breakage monitoring
⦁ Function marking / rapid beading
⦁ Function deburring and roller technology
⦁ Breakage control for punch
⦁ Descending die

Skeleton-free processing
⦁ Skeleton-free processing

Machine options
⦁ Anti-vibration installation

Options for thin sheet processing
⦁ Sheet collision detection
