PRESS BRAKE TRUMPF TRUBEND 5320 (B03), PM-1453

Standard configuration

Machine
⦁ Stable machine frame as all-steel construction
⦁ Ram, stress relief annealed
⦁ Spherical ram suspension, with ram tilt
⦁ Electro-hydraulic downstroking drive with 4-cylinder technology
⦁ Modern block hydraulics with control valves mounted on the cylinder
⦁ Electronic pressure balance
⦁ Measuring system
⦁ Hydraulic oil filled in the machine (lifetime lubrication)
⦁ Oil cooler
⦁ Switch cabinet cooling (air-air heat exchanger)
⦁ Modern machine design

Backgauge system
⦁ Backgauge system 2-axes

Tool holder
⦁ Manual upper tool clamping
⦁ Shifting: programmable

Crowning
⦁ Manual crowning: Integrated in the table, manual adjustable crowning via wedges

Lower Tool Adjustement
⦁ Lower tool adjustment CNC, programmable

Safety
⦁ Standard Safety equipment

Control
⦁ TRUMPF TASC 6000

Operation
⦁ Communication Track
⦁ Control panel: With LCD panel, footswitch für Emergency up, down and E-STOP

Additional Equipment

Backgauge System
⦁ 6-axis backgauge System with switch Cabinet air conditioning

Tool holder
⦁ Hydraulic upper tool clamping

Crowning
⦁ CNC crowning

Safety device
⦁ Safety device BendGuard (with Block-Laser)
⦁ Additional foot switch

Material handling
⦁ Front support brackets (2 pcs.)

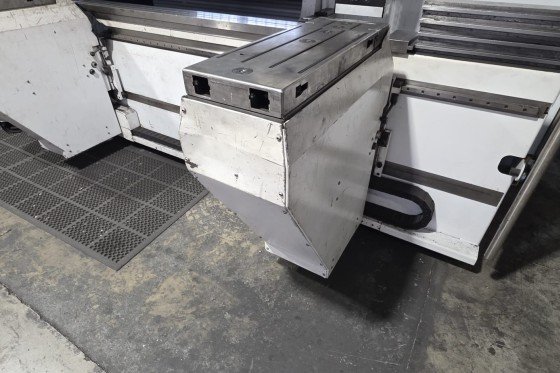

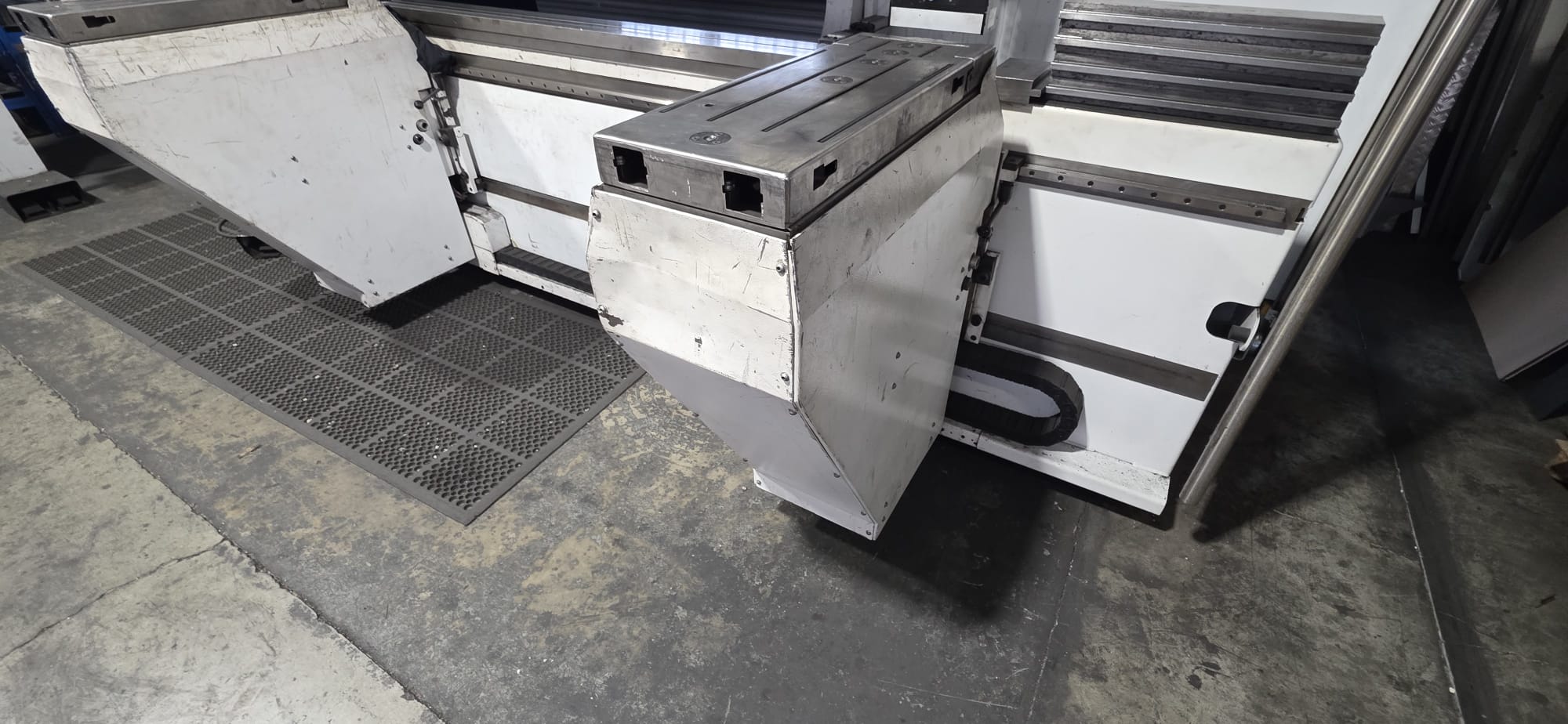

⦁ Bending aid first arm
⦁ Bending aid second arm
⦁ Table length extension (for one bending aid) (2 pcs.)
⦁ Parking position: 900 mm for up to two bending aids

Control
⦁ Teleservice via internet instead of modem

Additional options TruBend
⦁ Optical setup and positioning aid
⦁ Work area lighting rear
⦁ Work area lighting front
