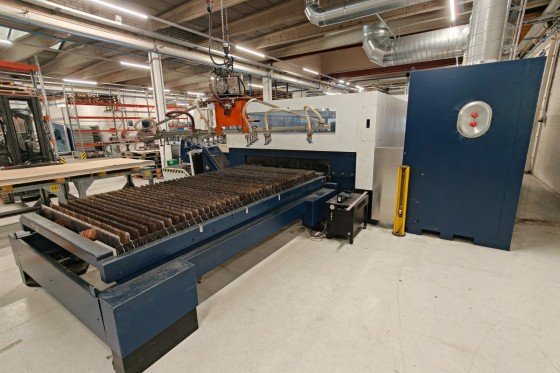

LASER CUTTING MACHINE TRUMPF TRULASER 5030 (L52), 6000 WATT, LM-2013

Standard configuration

Machine
⦁ Closed machine frame with integrated laser unit
⦁ Motion unit for high precision processing
⦁ Enclosed beam delivery system
⦁ Chiller
⦁ Automatic pallet changer
⦁ One cutting head strategy
⦁ Longitudinal conveyor for small parts / slag
⦁ Ergonomic control panel with Touchscreen
⦁ Positioning laser diode
⦁ Working area lighting
⦁ Spray device
⦁ PierceLine
⦁ FocusLine
⦁ NitroLine
⦁ PlasmaLine
⦁ Automatic nozzle cleaning

TRUMPF Laser
⦁ New generation CO2-Laser TruFlow 6000, energy-efficient
⦁ Maintenance-free radial turbine blowers
⦁ Radio-frequency excitation
⦁ Laser control TASC
⦁ Laser power control
⦁ Logbook function Laser

Laser cutting head
⦁ Lens with RFID-chip
⦁ Laser cutting head with 250 mm lens
⦁ Universal quick-change device UTI
⦁ ControlLine: Height regulation and sheet edge sensing

Control
⦁ Easy shopfloor programming
⦁ Easy to use
⦁ Fast reproduction
⦁ Siemens Sinumerik 840D SL
⦁ 19“ Touch panel
⦁ Technology data is integrated
⦁ Automatic shutdown
⦁ Programmable cutting gas pressure
⦁ Multi-sheet processing
⦁ Microweld
⦁ FastLine
⦁ AdjustLine
⦁ FlyLine
⦁ Interface remote support
⦁ Condition Guide

Data transfer
⦁ USB interface
⦁ RJ-45 network connection
⦁ Central Link
⦁ Online Update Manager

Safety
⦁ CE marking
⦁ Light barriers
⦁ Multi-chamber extraction system
⦁ Compact dust extractor
⦁ Machine enclosure consisting of Macrolon panels

Additional equipment

Machine options
⦁ Smart Nozzle Automation, comprises the following:
- Nozzle changer
- Beam centering
- LensLine with automatic status check
- Nozzle inspection
- Smart skip
⦁ BrightLine
⦁ Wide transverse conveyor with tilt container (right hand installation)
⦁ Integrated video camera 1 for process monitoring and single picture transmission to network integrated (view of the first 2.5 m)
⦁ Drop&Cut (only in conjunction with the integrated video camera 1)

Data transmission
⦁ Wireless Operation Point (prerquisite for MobileControl App and Visual Online Support)
