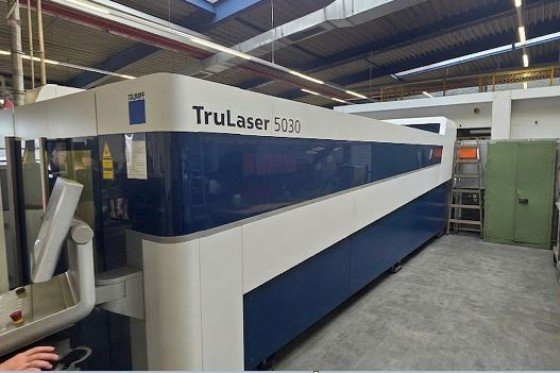

LASER CUTTING MACHINE TRUMPF TRULASER 5030 FIBER (L41), 3000 WATT, LM-2024

Standard configuration

Machine
· Closed machine frame with integrated laser unit
· Torque drive in combination with direct linear drives
· Enclosed beam delivery via fiber optic cable
· Chiller for machine cooling (water-air)
· Integrated eletrical cabinets with inside light
· Automatic pallet changer lengthwise installation
· Wide longitudinal conveyor
· Power supply TruDisk  via the machine
· Working area lighting
· Positioning laser diode
· Spray device
· PierceLine
· FocusLine
· NitroLine
· PlasmaLine
· Automatic nozzle cleaning

TRUMPF Laser
· Solid state laser TruDisk 3001 with 1 fiber optic cable laser output
· Fiber optic cable according standard layout
· Laser chiller unit (water-air)
· Stimulation via pump diodes
· Laser power control
· Logbook function Laser

Cutting head
· Universal Cutting head with complete adaptive lense system
· Protection glass to avoid lense contamination
· Protection glass monitoring
· ControlLine: Height regulation and sheet edge detection

Control
· SINUMERIK 840D SL
· 17” Touch panel
· Easy shop floor programming
· Advanced shop floor programming
· Fast reproduction
· Technology data is integrated
· Automatic shutdown
· Programmable cutting gas pressure
· FastLine

Data transmission
· RJ45 network connection
· USB interface

Safety
· CE label
· Light barriers
· Multi-chamber extraction system
· Integrated compact dust extractor
· Machine enclosure with certificated window (right door)

Automation

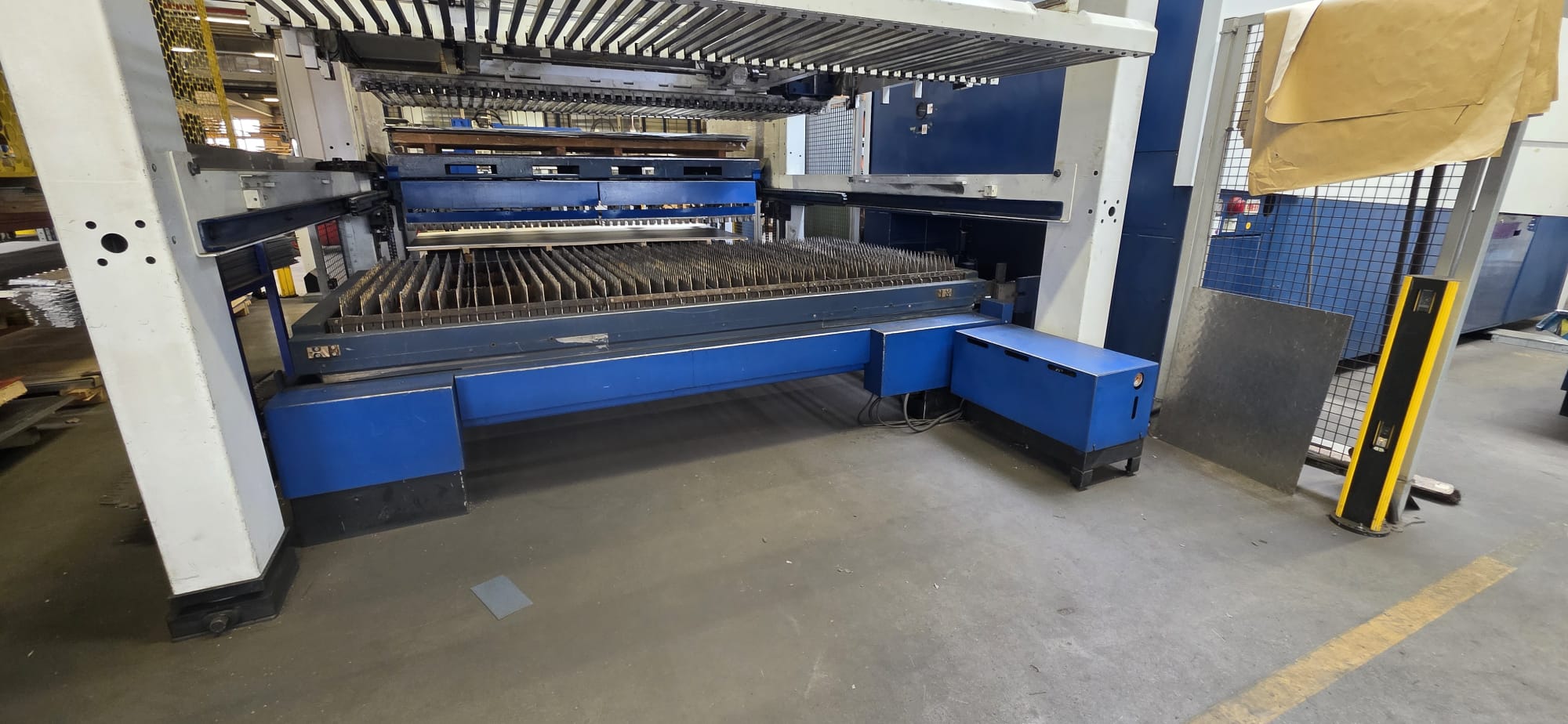

LiftMaster Compact

Loading
max. sheet format 3000 x 1500 mm
min. sheet format 1000 x 1000 mm
max. sheet thickness 25 mm
max. sheet weight 900 kg
Unloading
min. parts size 150 x 150 mm
max. sheet thickness 25 mm
max. sheet weight 900 kg

Basic configuration:
⦁ synchronous loader
⦁ peeling device
⦁ measuring device for thick sheets
⦁ movable unloading rake
⦁ raw material unpacking station
⦁ maximal stack height on loading side is 90 mm
⦁ maximal stack height on unloading side is 250 mm
