LASER CUTTING MACHINE TRUMPF TRULASER 3030 (L20), LM-2014

Standard configuration

Machine
⦁ Closed machine frame with integrated laser unit
⦁ Motion unit for high precision processing
⦁ Torque drive in combination with direct linear drives
⦁ Enclosed beam delivery system
⦁ Single cutting head strategy
⦁ Chiller

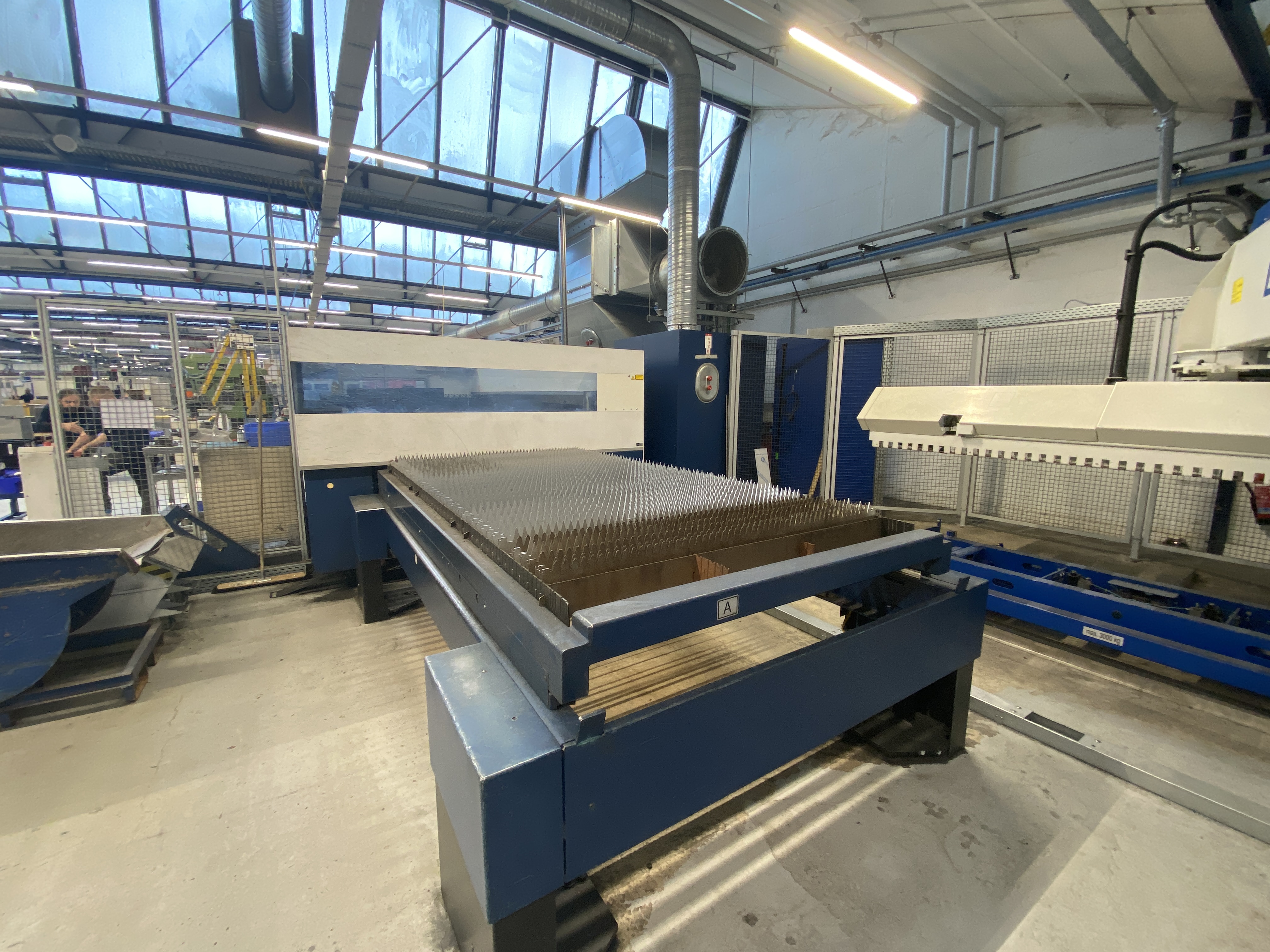

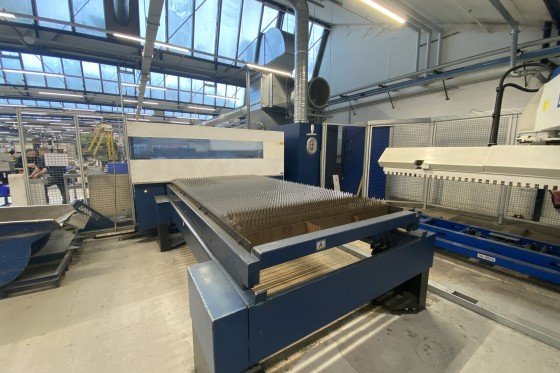

⦁ Automatic pallet changer in longitudinal direction
⦁ Conveyor belt for small parts / slug
⦁ 17" Touch screen
⦁ Work area lighting
⦁ Positioning laser diode
⦁ Spray device
⦁ PierceLine
⦁ FocusLine
⦁ NitroLine
⦁ PlasmaLine

TRUMPF Laser

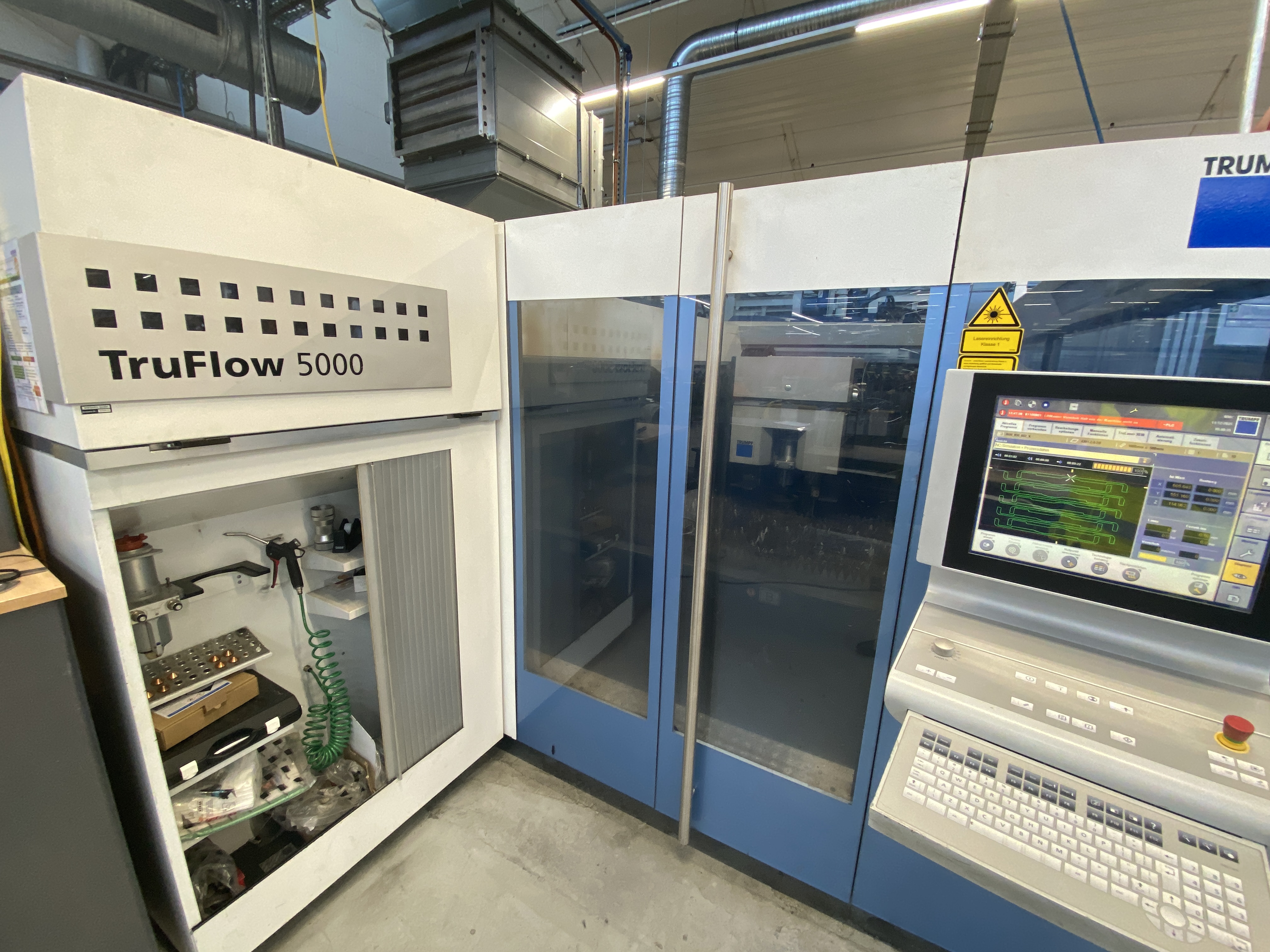

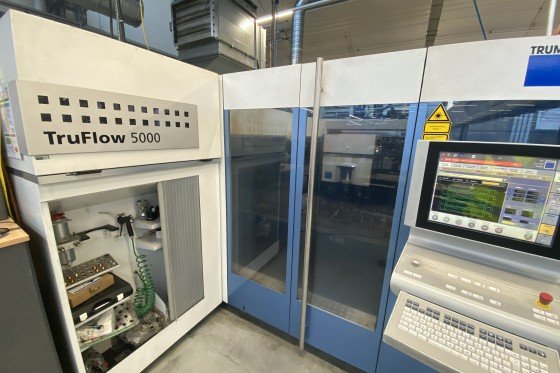

⦁ CO2 laser TruFlow 5000 with optimized standby
⦁ Maintenance-free radial turbine blower
⦁ Radio-frequency excitation
⦁ Laser control TASC
⦁ Laser power control
⦁ Logbook function laser

Cutting head
⦁ LensLine with status check
⦁ Lens cutting head with 250mm focal length
⦁ Universal quickchange device for cutting head (UTI)
⦁ ControlLine: automatic height control and sheet edge detection

Control
⦁ Easy shop floor programming
⦁ Advanced shop floor  programming
⦁ Fast reproduction
⦁ Control Sinumerik 840D SL
⦁ Technology data is integrated
⦁ Automatic shut-down device
⦁ Production plan
⦁ Programmable cutting gas pressure
⦁ ContourLine
⦁ Microweld
⦁ FastLine
⦁ FlyLine
⦁ AdjustLine

Data transfer
⦁ USB - interface
⦁ RJ45 network connection

Safety
⦁ CE label
⦁ Light barriers
⦁ Monitoring system
⦁ Multi chamber exhaust system
⦁ Compact dust extractor
⦁ Machine enclosure with Macrolon panels

Additional configuration

⦁ Thin Sheet Productivity Package (high-speed cutting, standard cutting, and compressed air cutting for thin sheet metal; includes a laser cutting head with a 130 mm focal length and compressed air cutting)
⦁ Nozzle Changer
⦁ Wide Cross Conveyor Belt with Tilting Bin
⦁ Cleaning Brush
⦁ DetectLine: Precise Sheet Position Detection
⦁ Warehouse Interface

Automation

⦁ LiftMaster
⦁ STOPA Storage Sytem (4 towers)
