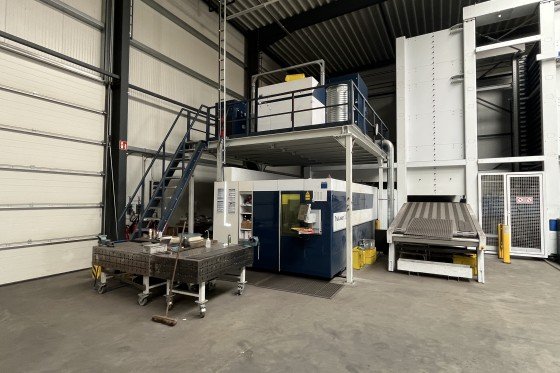

LASER CUTTING MACHINE TRUMPF TRULASER 3030 FIBER (L49), 6000 WATT, LM-2019

Standard configuration

Machine
⦁ Closed machine frame
⦁ Integrated cabinet
⦁ Motion unit for high precision processing
⦁ Torque drive in combination with direct linear drives
⦁ Chiller
⦁ Automatic pallet changer lengthwise installation
⦁ Enclosed beam delivery via laser light cable
⦁ Integrated electrical cabinets with inside light
⦁ Ergonomic control panel with Touchscreen
⦁ Work area lighting
⦁ Spray device
⦁ PierceLine
⦁ FocusLine
⦁ NitroLine
⦁ Automatic nozzle cleaning

TRUMPF lasers
⦁ External solid state laser TruDisk 3001 with 1 fiber optic cable laser output
⦁ Stimulation via pump diodes
⦁ Laser power control

Cutting head
⦁ Universal cutting unit
⦁ One cutting head strategy
⦁ Protection glass to avoid lens contamination
⦁ Online protection glass monitoring
⦁ ControlLine

Control
⦁ Easy shop floor programming
⦁ Fast post production
⦁ Control Sinumerik 840D SL
⦁ 19" Touch panel
⦁ Technology data is integrated
⦁ Copper cutting package
⦁ Brass cutting package
⦁ Automatic shutdown
⦁ Programmable cutting gas pressure
⦁ Multi-sheet processing
⦁ Microweld
⦁ FastLine
⦁ AdjustLine
⦁ FlyLine
⦁ Interface remote support
⦁ Condition Guide
⦁ Data transmission
⦁ RJ45 network connection and a USB interface
⦁ Central Link
⦁ Online Update Manager

Safety
⦁ CE label
⦁ Light barriers
⦁ Multi-chamber extraction system
⦁ Compact dust extractor
⦁ Machine enclosure with certificated window (right door)
⦁ Push-up roof

Additional equipment

Laser options
⦁ External Solid-state laser TruDisk 6001 with 1 laser output
The scope of delivery of the TruDisk 6001 also includes:
- BrightLine fiber
- Performance package fusion cut
- Cutting package Highspeed

Machine options
⦁ Nozzle changer
⦁ Divided slag draw
⦁ Machine pedestal design

Automation

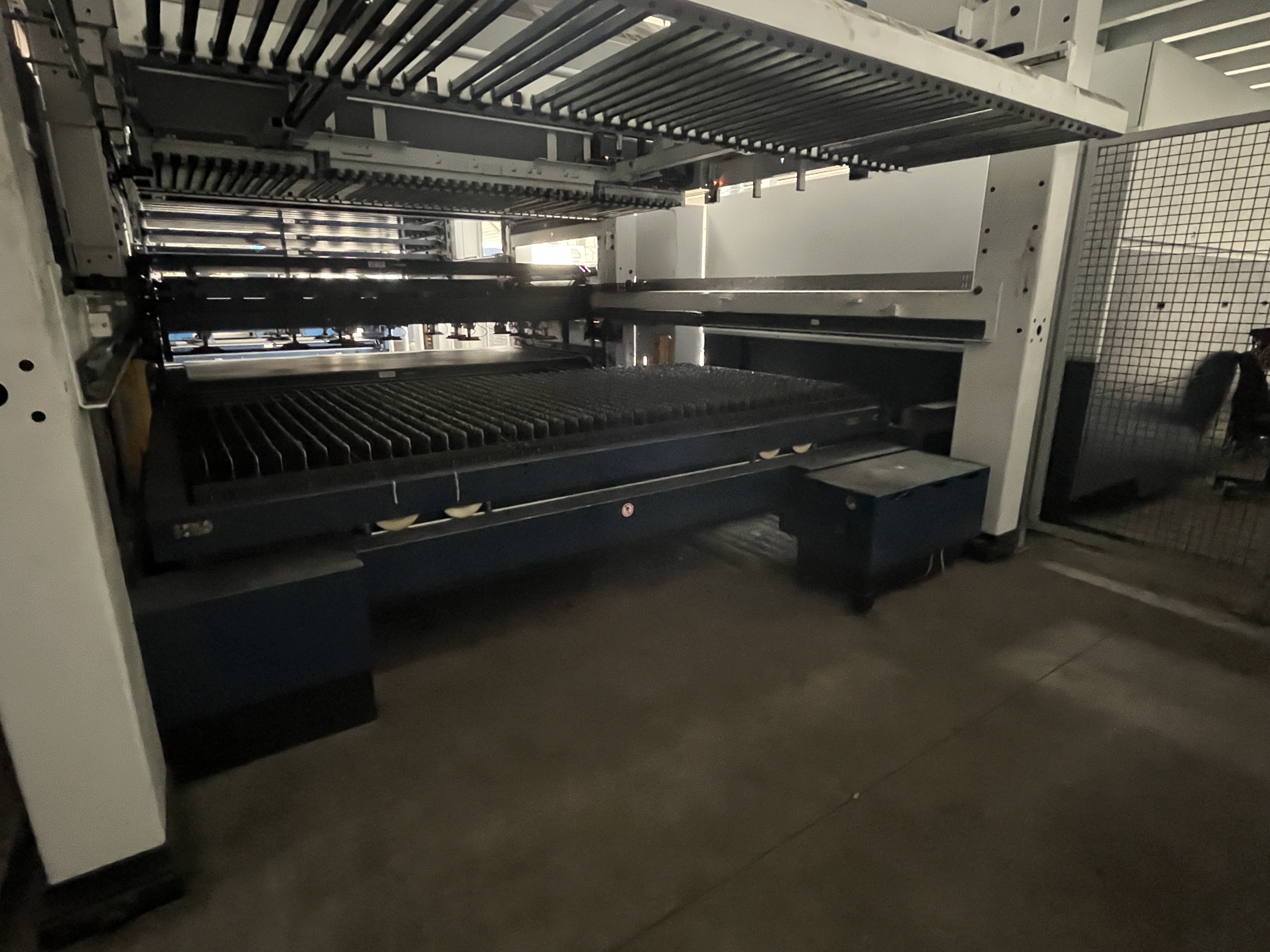

LiftMaster Compact A34 basic unit
⦁ Loading station; stack height of 90 mm / 3 t
⦁ Movable unloading rake (prong spacing 67 mm, replaceable prongs)
⦁ Finished part pallet and extended pallet removal station at the machine
⦁ Peeling unit
⦁ Double sheet detection
⦁ Synchronous loader including separation of thin sheet (0.8 - 2.0 mm)

LiftMaster Compact options
⦁ Safety devices for connection to storage system incl. 2nd light barrier circuit
⦁ PartMaster

Storage system

TruStore 3030 (A12)
Standard configuration TruStore 3030 (A12)
- Sheet size 3048 x 1524 mm
- Storage safety device
- Single or double tower with system height max. 8250 mm
- Loading height 90 or 170 mm
- 3 t load capacity per pallet
- Start post
- Column covering
- 55 storage locations

Rack server:
- Control panel with 19" touch screen
- Storage connection interface for connection to one automation solution
- Switch cabinet lighting
- Lifting chain, energy supply chain

TruStore options
⦁ Single tower - system height: 7710 mm
⦁ Double tower - system hight: 6450 mm
⦁ LiftMaster Compact initegration
⦁ PartMaster integration (Tower 1)
⦁ 1st infeed/outfeet cart
- Connection to Tower 2, excluding standard rail set
⦁ Front-end cart versoin
⦁ Scissor lift table (standard)
- indirect connection to Tower 2
- excluding standard rail set
⦁ Side-entry cart version
⦁ Storage cart
- Connection to LiftMaster
⦁ Double storage cart
⦁ Weighhing system
- Integrated into the storage
⦁ Storage interface for the integration of additional automation solutions

The LiftMaster Compact and TruStore 3030 (A12) are offered without refurbishment and therefore without warranty.
