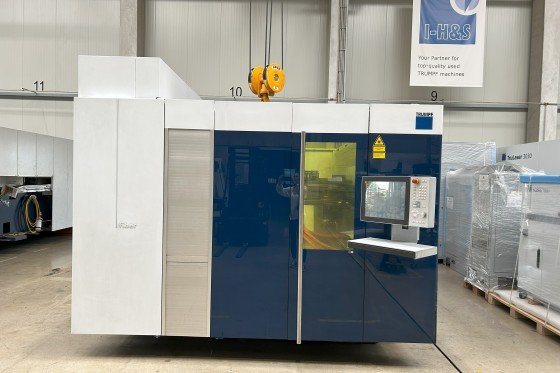

LASER CUTTING MACHINE TRUMPF TRULASER 3030 fiber (L49), 4000 WATT, LM-1979

Solicitud directa de cotización
LM-1979
TRUMPF
TruLaser 3030 fiber (L49)
2016
3000 x 1500 x 115 mm
4000 Watt
Siemens Sinumerik 840 D SL
20 mm
20 mm
20 mm
140 m/min

Standard Configuration

Machine
⦁ Closed machine frame
⦁ Integrated cabinet
⦁ Motion unit for high precision processing
⦁ Torque drive in combination with direct linear drives
⦁ Chiller
⦁ Automatic pallet changer lengthwise installation
⦁ Enclosed beam delivery via laser light cable
⦁ Integrated electrical cabinets with inside light
⦁ Wide longitudinal conveyor
⦁ Ergonomic control panel with Touchscreen
⦁ Work area lighting
⦁ Positioning laser diode
⦁ Spray device
⦁ PierceLine
⦁ FocusLine
⦁ NitroLine
⦁ PlasmaLine
⦁ Automatic nozzle cleaning

TRUMPF laser
⦁ External solid state laser TruDisk 4001 with 1 fiber optic cable laser output
⦁ Stimulation via pump diodes
⦁ Laser power control

Cutting head
⦁ Universal cutting unit
⦁ One cutting head strategy
⦁ Protection glass to avoid lens contamination
⦁ Protection glass monitoring
⦁ ControlLine

Control
⦁ Easy shop floor programming
⦁ Fast post production
⦁ Control Sinumerik 840D SL
⦁ 17" Touch panel
⦁ Technology data is integrated
⦁ Automatic shutdown
⦁ Programmable cutting gas pressure
⦁ Multi-sheet processing
⦁ FastLine
⦁ Microweld
⦁ AdjustLine
⦁ FlyLine

Data transmission
⦁ RJ45 network connection
⦁ USB interface
⦁ Wireless Operation Point (basis für Visual Online Support)

Safety
⦁ CE label
⦁ Light barriers
⦁ Multi-chamber extraction system
⦁ Machine enclosure with certificated window (right door)
⦁ Push-up roof

Additional Equipment

⦁ Nozzle changer

Automation

⦁ Preparation LoadMaster



profile
