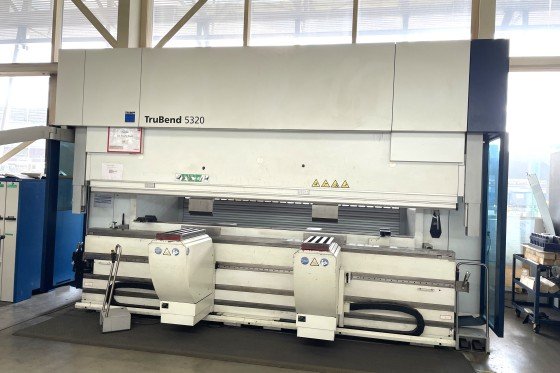

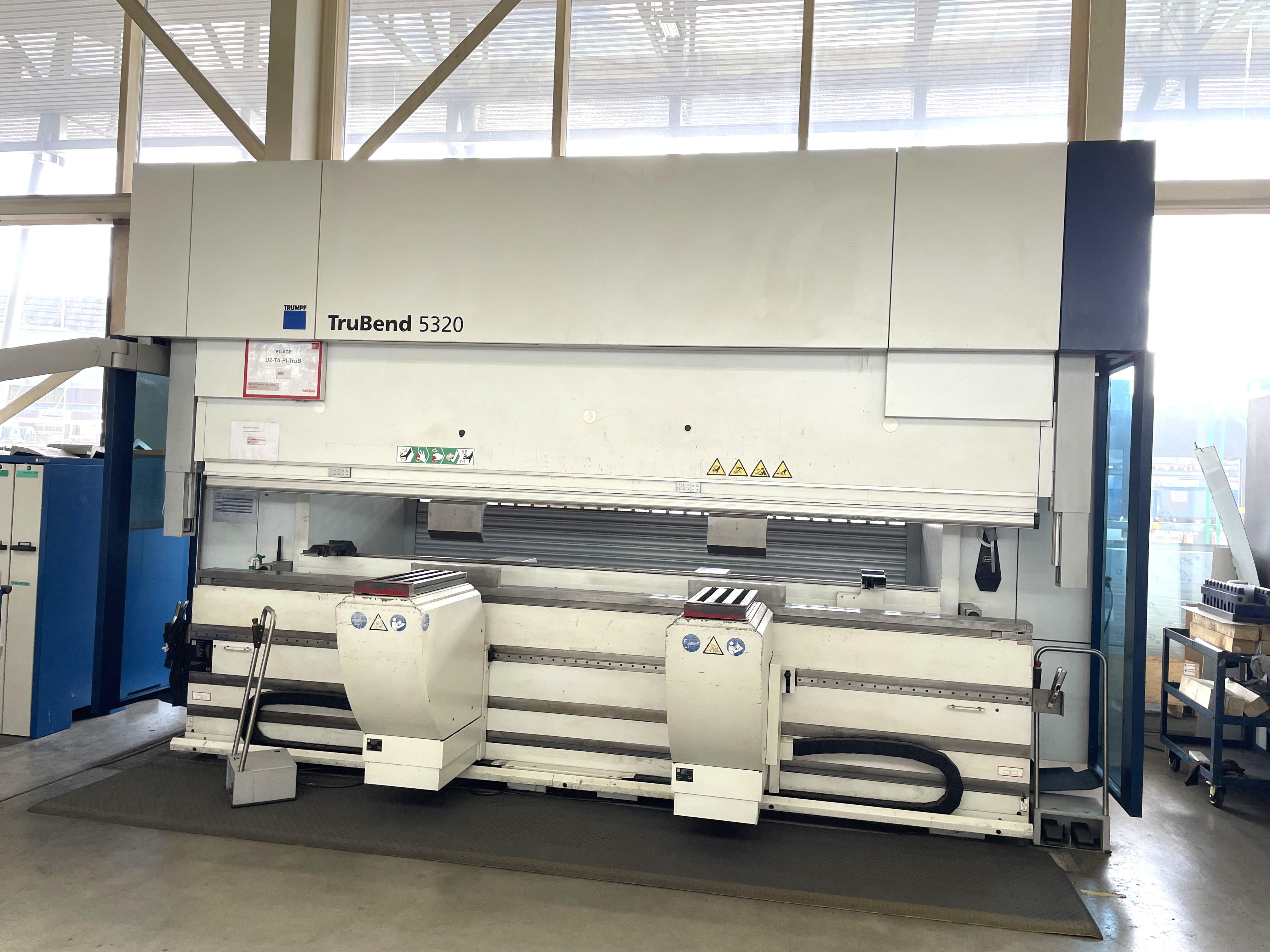

PRESS BRAKE TRUMPF TRUBEND 5320 (B23), PM-1428

Standard configuration

Machine
⦁ C frame
⦁ Press beam
⦁ Spherical bearing of the press beam with press beam tilting
⦁ On-Demand Servo Drive with 4-cylinder technology
⦁ Distance measurement system (Y axis) with dynamic deflection compensation
⦁ Hydraulic oil filling (life-long filling)
⦁ Extension of the open height/stroke

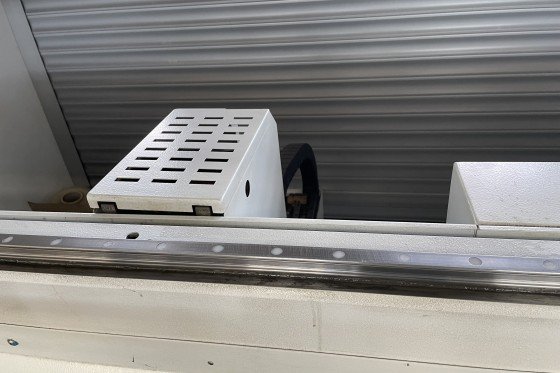

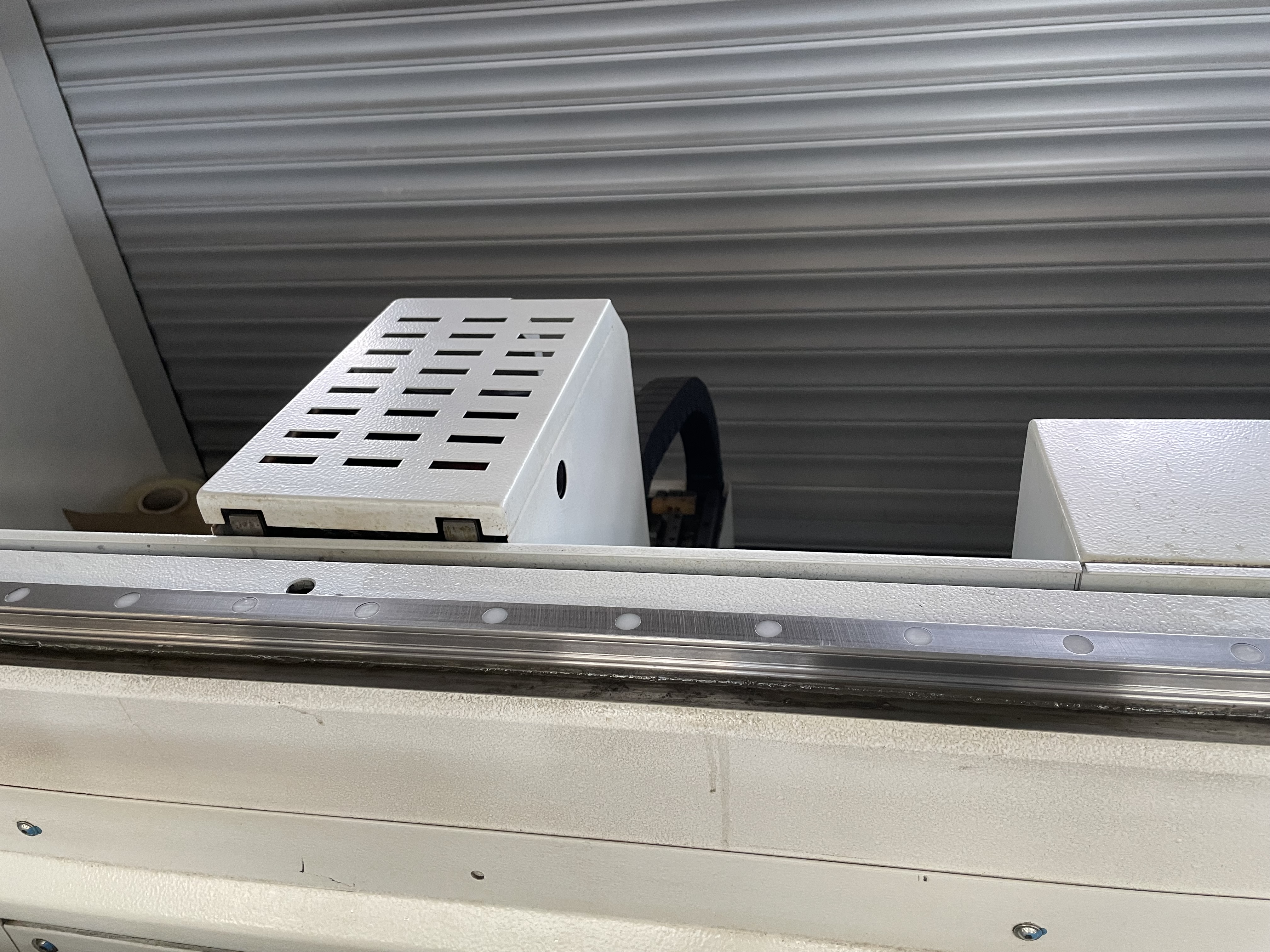

Backgauge
⦁ Gauge fingers (2 pieces)

Tool clamp
⦁ TRUMPF hydraulic lower tool clamp

Control

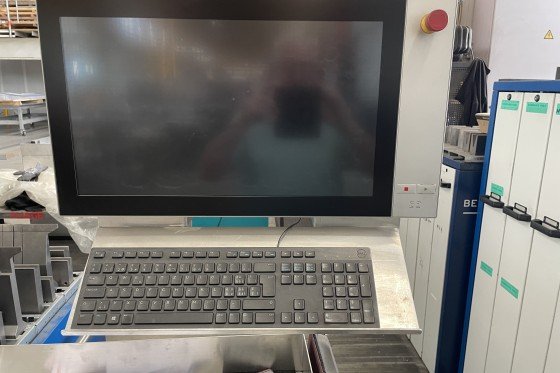

⦁ Touchpoint TruBend machine control
⦁ Integrated TRUMPF technology data
⦁ User management system
⦁ Data transmission
⦁ USB interface
⦁ RJ45 network interface
⦁ Network capability
⦁ Central Link
⦁ Remote support interface

Operation
⦁ Operating unit with foot switches
⦁ Communications rail
⦁ MobileControl

Safety
⦁ CE marking
⦁ Standard safety device
⦁ Lateral sliding doors
⦁ Rear roller gate

Advanced standard configuration
⦁ Electrical cabinet air conditioning up to an ambient temperature of 40 °C
⦁ Manual wedge crowning
⦁ 2-axis backgauge (X and R axis)
⦁ Manual TRUMPF upper tool clamp
⦁ Pneumatic lower tool displacement (I axis)
⦁ Operating panel: Support arm with height adjustment
⦁ Shop floor programming - TecZone Bend (trial)

Additional equipment

Angle Assistance package
⦁ ACB Wireless (Automatically Controlled Bending)
⦁ Thickness Controlled Bending (TCB)

Backgauge
⦁ 5-axis backgauge (X, Delta X, R, Z1, and Z2 axis

Tool clamp
⦁ TRUMPF hydraulic upper tool clamp

Operation
⦁ Preparation for wireless operating options
- For MagicShoe function and/or wireless operating unit with foot switches
⦁ Wireless operating unit with foot switches switch
     - Scope of delivery: wireless operating unit with foot switch and connector incl. charging station
     - Restriction: Maximum one wireless operating unit with foot switch per machine
⦁ Additional operating unit with foot switch
     - Cable-based
⦁ Additional MobileControl
⦁ Tool Indicator
⦁ Front work area illumination
     - LED
⦁ Rear work area illumination
     - LED

Material handling
⦁ Bending aid 1st arm
     - With plastic support
⦁ Bending aid 2nd arm
     - Equipment identical to bending aid 1st arm
⦁ Brush support (2 pcs.)
     - For a bending aid, support bracket or table width extension

Safety
⦁ BendGuard Automatic

Special options
⦁ Robot interface without sensor system for backgauge
