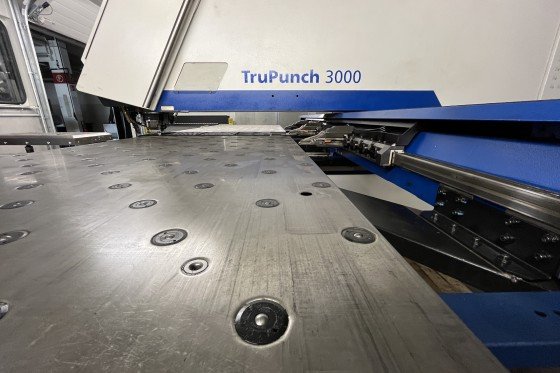

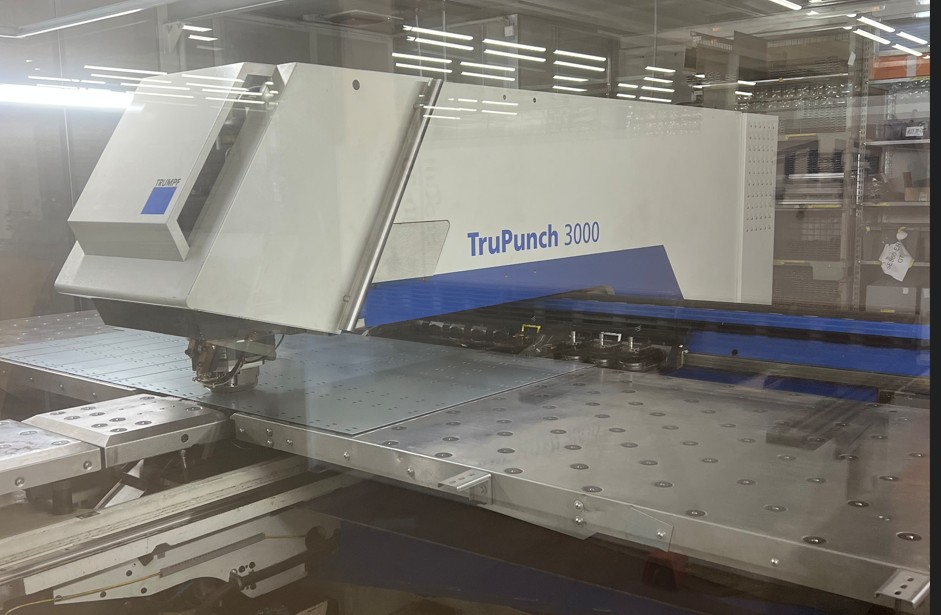

PUNCHING MACHINE TRUMPF TRUPUNCH 3000 - 1300 (S06), SM-1351

Standard configuration

Machine
⦁ Stable C-frame for easy access
⦁ Coordinate guide for high-precision machining
⦁ Linear magazine incl. 2 clamps
⦁ Drives with maintenance free 3-phase servo motors
⦁ Repositioning unit with programmable stripper
⦁ Ball-fitted tables
⦁ Parts chute 500 x 500 mm
⦁ Good parts container
⦁ Chip container
⦁ Automatic shutdown mechanism

Punching station
⦁ Electro-hydraulic punching head
⦁ Rotatable single tool adapter
⦁ Programmable presser foot
⦁ Tool length compensation
⦁ Spray lubrication for punches
⦁ Vacuum slug removal
⦁ Forming

Control
⦁ Controller based on Bosch PNC-B
⦁ Control panel with 12,0“ TFT screen
⦁ NC program management
⦁ Production plan
⦁ On-line help
⦁ Integrated technology data
⦁ Diagnostic function

Programming
⦁ Shop floor programming in machine vicinity

Data transmission
⦁ Network connection and floppy drive

Safety
⦁ CE marking
⦁ Multi-beam light barriers
⦁ Rapid hydraulic shutdown

Additional equipment

Punching options
⦁ Function MultiTool
⦁ Function MultiShear
⦁ Function Tapping
⦁ Function deburring and roller technology
⦁ Adaptive stroke calibration
⦁ Manual adjustable presser foot force
⦁ Die spray lubrication

Machine options
⦁ 1 additional clamp
⦁ Repositioning cylinders
⦁ Sensor for part chute
⦁ Installation on air cushions

Options for thin sheet processing
⦁ Sheet collision detection
⦁ Ball tables with loading and unloading ai
