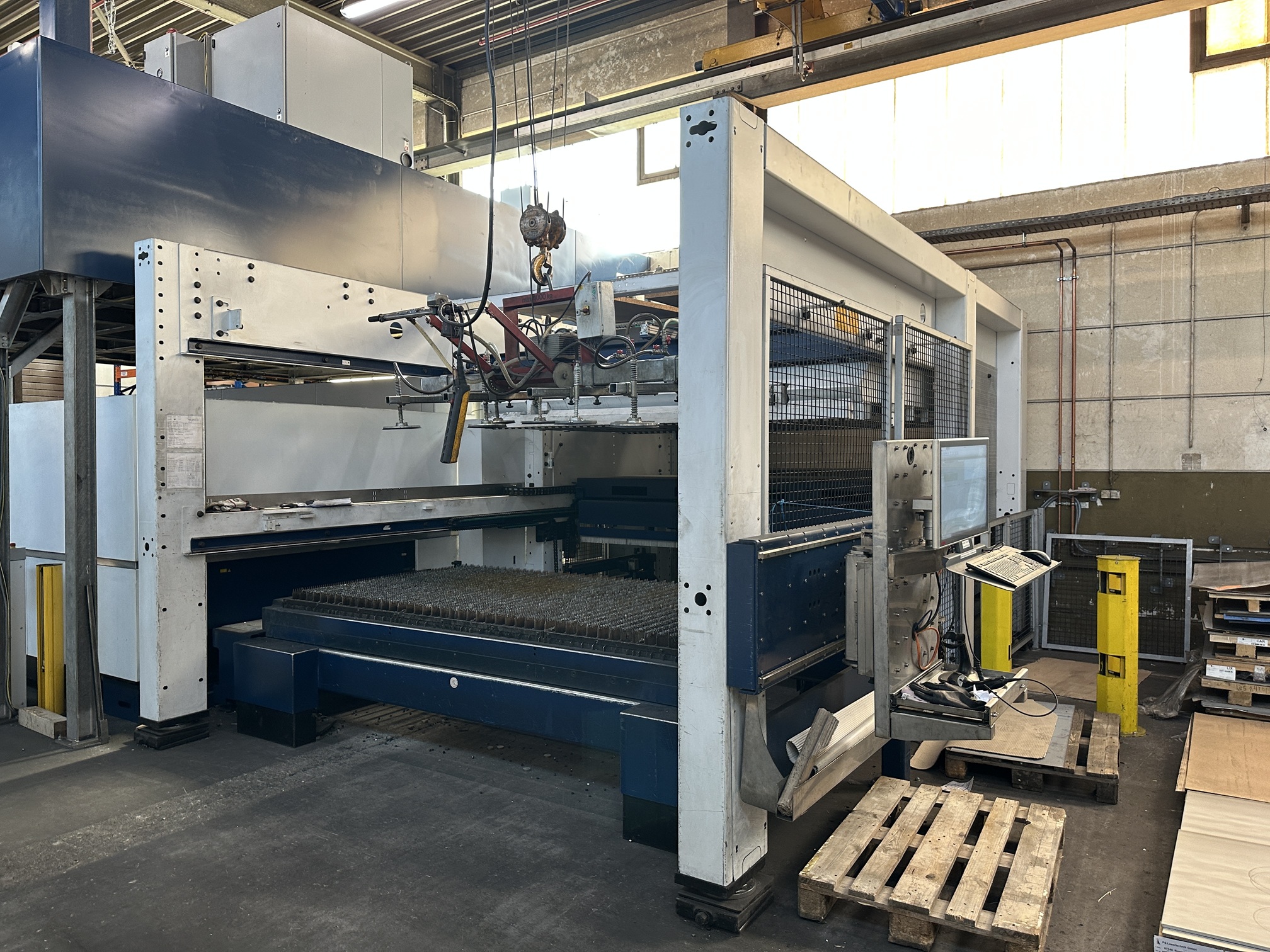

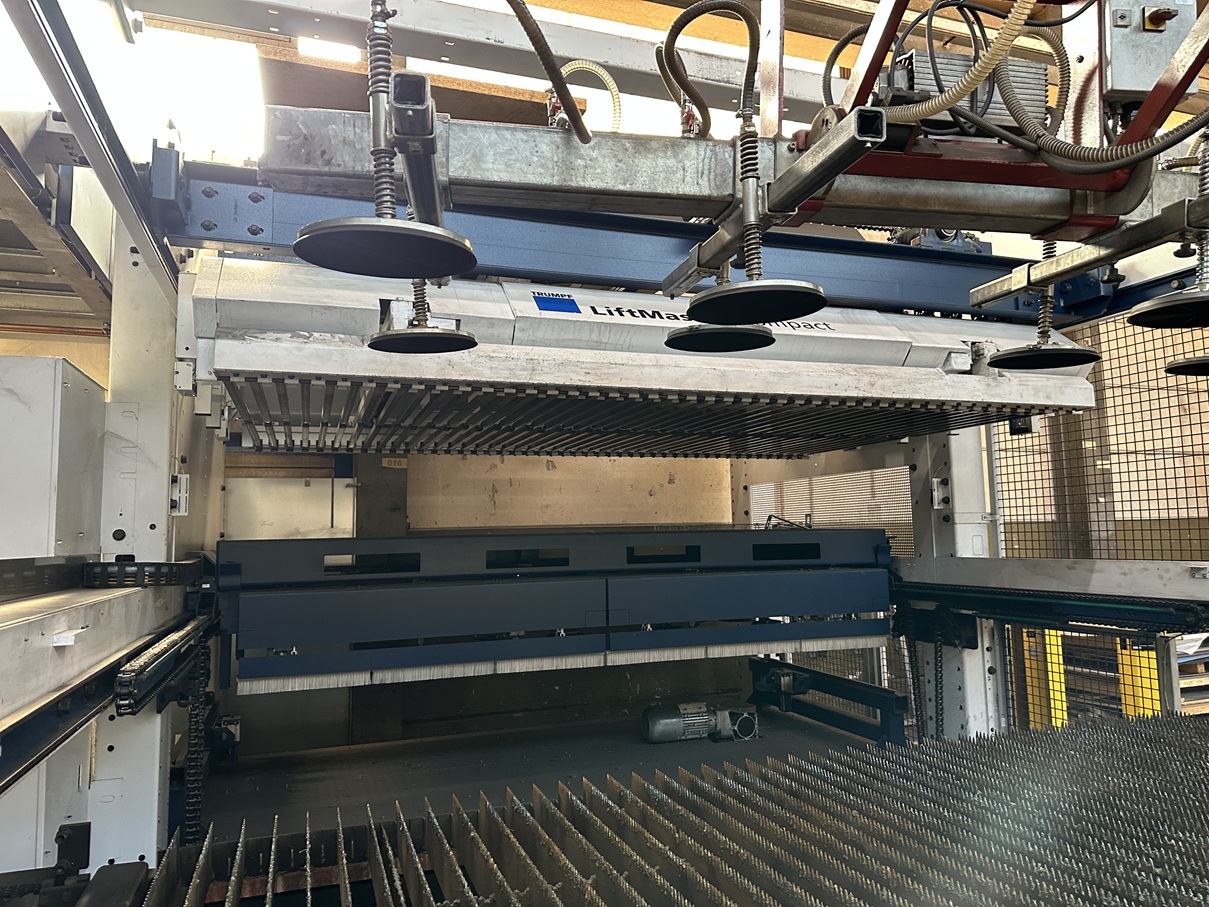

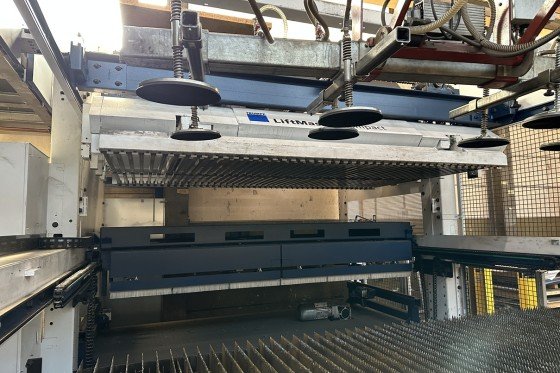

AUTOMATION TECHNOLOGY TRUMPF LIFTMASTER COMPACT 1530 (AL34), LMZ-1121
LMZ-1121
TRUMPF
LiftMaster Compact 1530 (AL34)
2019
Automation
LiftMaster Compact
Loading
max. sheet format 3000 x 1500 mm
min. sheet format 1000 x 1000 mm
max. sheet thickness 25 mm
max. sheet weight 900 kg
Unloading
min. parts size 150 x 150 mm
max. sheet thickness 25 mm
max. sheet weight 900 kg
LiftMaster Compact 1530 (AL 34) basic unit
⦁ Type 1530: sheet sizes/thicknesses 3048 mm x 1524 mm
⦁ Store interface
Loading
⦁ Peeling unit
⦁ Double sheet detection
⦁ Synchronous loader including separation of thin sheet (0.8 - 2.0 mm)
Advanced standard configuration
⦁ Extended pallet removal
⦁ Loading station; stack height of 90 mm
⦁ Mild steel rake (prong spacing 67 mm, replaceable prongs)
⦁ Finished part pallet
LiftMaster Compact options
⦁ Cleaning brush for slats
